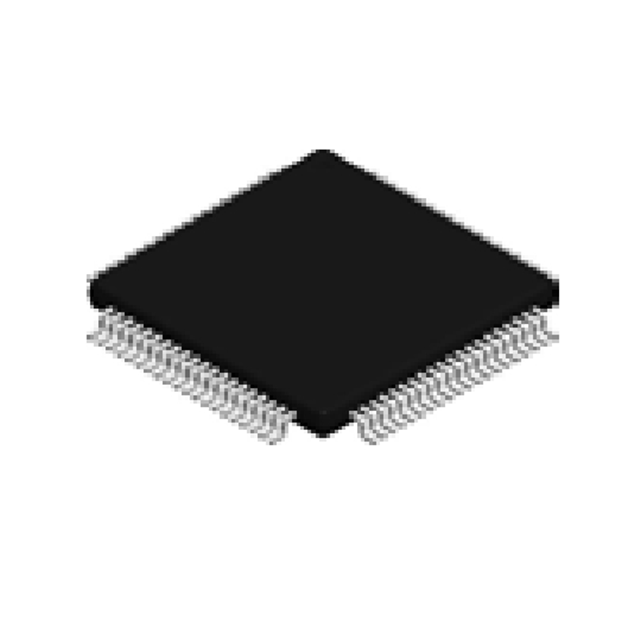

F28P559SJ9PNAQ1 is a C2000™ real-time microcontroller for automobiles launched by (TI), belonging to the C2000™ real-time microcontroller series. Youdaoplaceholder0 The controller is designed to enhance the efficiency of power electronics, especially for high power density, high switching frequency applications, and supports GaN and SiC technologies. The main features and specifications of F28P559SJ9PNAQ1 include:

Core processor: C28x

Kernel specification: 32- bits

Speed: 150MHz

Connection capabilities: CANbus, I2C, SCI, SPI, UART/USART, USB

Peripherals: AES, Power Failure detection/reset, DMA, POR, PWM, WDT

I/O number: 32

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 133K x 8

Voltage - Power Supply (Vcc/Vdd) : 2.8V - 3.63V

Data converter: A/D 28x12b SAR D/A 1x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

Supplier device packaging: 80-TQFP (10x10)

Application scenarios

The F28P559SJ9PNAQ1 microcontroller is widely used in various power electronics and control systems, including motor drives, hybrid systems, electric and powertrain systems, solar and electric vehicle charging, digital power supplies, body electronics and lighting, etc. Its high performance and low latency make it excel in systems that require efficient energy management and control ‌.
