The DSPIC33CH512MP505-I/PT is a new digital signal controller (DSC) that integrates two dsPIC DSC cores and is ideally suited for complex but cost-effective advanced sensing, core-independent touch, motor and digital power applications.

Product Details:

Model: DSPIC33CH512MP505-I/PT

Family: dsPIC™ 33CH

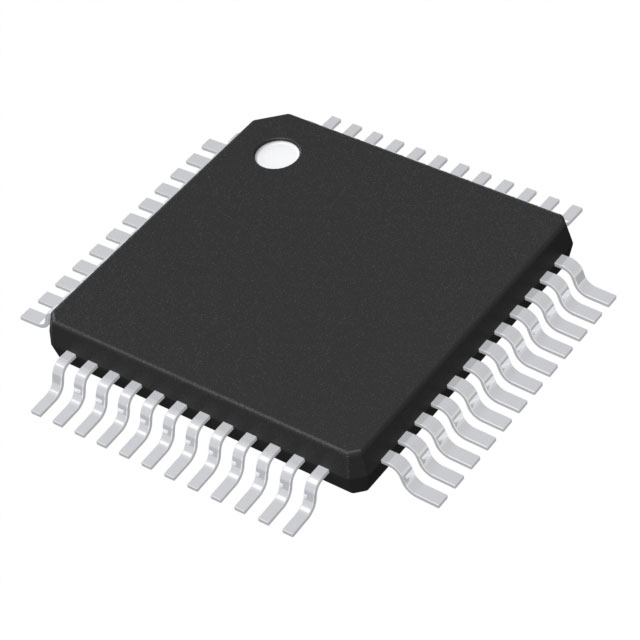

Package: TQFP-48

Type: Digital Signal Controller

Core: dsPIC33CH

No. of Cores: 2 Core

Maximum Clock Frequency: 180 MHz, 200 MHz Program Memory Size: 1 Core, 2 Cores 200 MHz

Program memory size: 512 kB

Data RAM size: 16 kB, 48 kB

Operating supply voltage: 3 V to 3.6 V

Mounting style: SMD/SMT

Minimum operating temperature: - 40 °C

Maximum operating temperature: + 85 °C

Data bus width: 16 bit

Interface types: CAN, I2C, I2S, SPI, UART

DSPIC33CH512MP505-I/PT Product Features:

Operating Conditions

3V to 3.6V, -40°C to +150°C

Core: Dual-core dsPIC33CH DSC

Running at 90 MHz for the main core and 100 MHz for the secondary core

Single-cycle (MAC/MPY) with dual data fetch

Single-cycle, mixed-symbol MUL with hardware division

32-bit multiplication support Multiplication

Five sets of interrupt context select registers and accumulators per core for fast interrupt response

High-performance peripherals for real-time control

4 x 12-bit 3. 5 MSPS ADCs

High-speed PWMs with 250 ps resolution, 12 Ch

Optimised for high-performance digital power supplies, motor control and applications requiring complex algorithms
