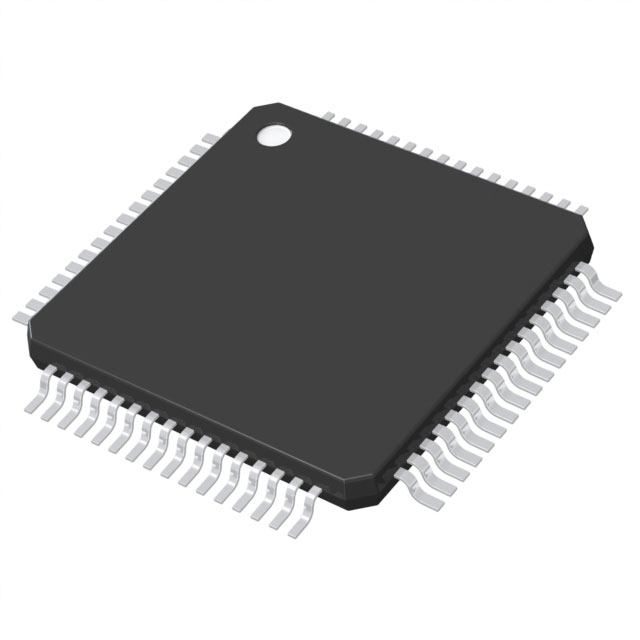

DSPIC33CH256MP506-I/PT: 16-bit Dual Core dsPIC™ 33CH Digital Signal Controller, TQFP-64

Product Details:

Model: DSPIC33CH256MP506-I/PT

Family: dsPIC™ 33CH

Package: TQFP-64

Type: Digital Signal Controller

DSPIC33CH256MP506-I/PT Product Attributes:

Product Category: Digital Signal Controllers - DSCs

Product: DSCs

Core: dsPIC33CH

Number of Cores: 2 Core

Maximum Clock Frequency: 180 MHz, 200 MHz

Package / Case: TQFP-64

Program Memory size: 256 kB

Data RAM size: 16 kB , 32 kB

Operating supply voltage: 3 V to 3.6 V

Mounting style: SMD/SMT

Minimum operating temperature: - 40 °C

Maximum operating temperature: + 85 °C

Data bus width: 16 bit

Interface types: CAN, I2C, I2S, SPI, UART

Information:

Microchip's dsPIC33CH family of digital signal controllers (DSCs) features dual 90 and 100 MIPS 16-bit dsPIC® DSC cores with integrated DSPs and enhanced on-chip peripherals. They can be used to control BLDC, PMSM, ACIM, SR, and stepper motors. These DSCs support the design of switch-mode power supplies such as AC/DC, DC/DC, UPS, and PFC, and provide high-precision digital control of buck, boost, flyback, half-bridge, full-bridge, LLC, and other power supply circuits for maximum efficiency.
