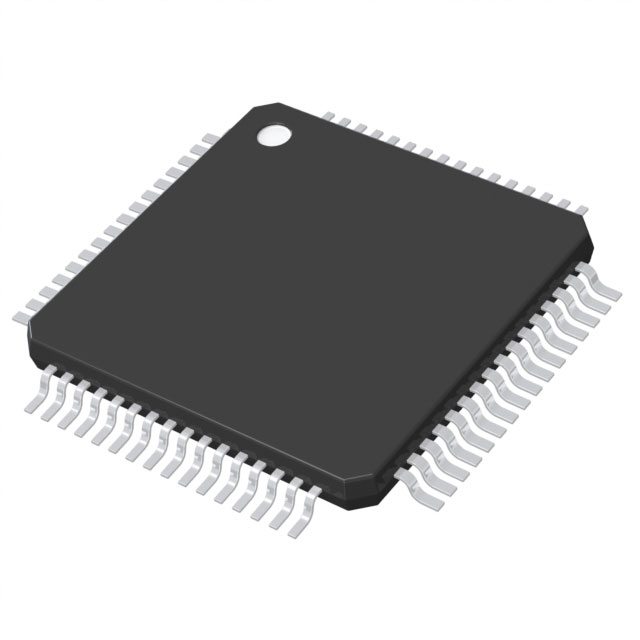

DSPIC33CH64MP506-E/PT (dsPIC™ 33CH DSC) 16-Bit Dual-Core Digital Signal Controller, TQFP-64

Basic Information:

Model: DSPIC33CH64MP506-E/PT

Series: dsPIC™ 33CH

Package: TQFP-64

Type: Digital Signal Controller

DSPIC33CH64MP506-E/PT Specifications:

Core Processor: dsPIC

Core Specification: 16-bit Dual Core

Speed: 180MHz, 200MHz

Number of I/Os: 53

Program Memory Capacity: 88KB (88K x 8)

Program Memory Type: FLASH, PRAM

RAM Size: 20K x 8

Voltage - Supply (Vcc/Vdd ): 3V ~ 3.6V

Data Converter: A/D 34x12b; D/A 4x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Vendor Device Package: 64-TQFP (10x10)

Package/Case: 64-TQFP

DSPIC33CH64MP506-E/PT Product Features:

Operating Conditions

3V to 3.6V, -40°C to +150°C

Core: Dual-core dsPIC33CH DSC

90 MHz primary and 100 MHz secondary operation

Single-cycle (MAC/MPY) with dual data fetch

Single-cycle, mixed-symbol MUL plus hardware division

32-bit multiplication support

Five sets of interrupt context select registers and accumulators per core for fast interrupt response

High-performance peripherals for real-time control

4 x 12-bit 3. 5 MSPS ADCs

High-speed PWM with 250 ps resolution, 12 Ch

Optimised for high-performance digital power supplies, motor control and applications requiring complex algorithms
