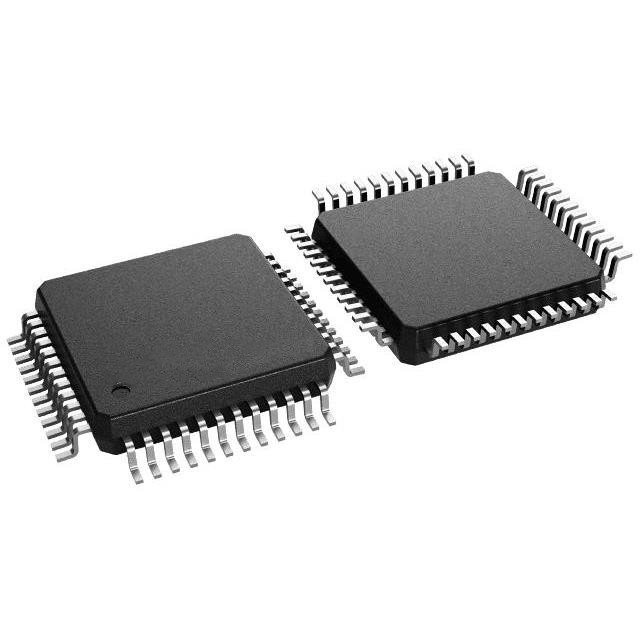

The M0L1228QPMRQ1 device is an automotive-grade microcontroller featuring 256KB dual flash memory, 32KB SRAM, 12-bit ADC, COMP, and VBAT. It is based on the Arm® Cortex®-M0+ 32-bit core platform and can operate at a maximum frequency of up to 32MHz. This device incorporates VBAT standby islands, network security mechanisms, and high-performance integrated simulation, and offers outstanding low-power performance throughout the entire operating temperature range.

The main specifications of M0L1228QPMRQ1 include:

Core processor: ARM® Cortex®-M0+

Kernel specification: 32- bits

Speed: 32MHz

Connection capabilities: DALI, I2C, IrDA, LINbus, Smart Card, SMBus, SPI, UART/USART

Peripherals: Under-voltage detection/reset, DMA, POR, PWM, WDT

I/O number: 59

Program storage capacity: 256KB (256K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 32K x 8

Voltage-supply (Vcc/Vdd) : 1.62V to 3.6V

Data converter: A/D 6x12b SAR

Oscillator types: external, internal

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

Supplier device package: 64-LQFP (10x10)

M0L1228QPMRQ1 is widely applied in the following fields:

Automotive electronics: for control of automotive sensors and modules conforming to AEC Q100 standard, for body electronics and lighting systems ‌.

Industrial Control: For industrial automation and sensor applications, providing reliable diagnostic data and low power performance ‌.

Battery Management: For monitoring battery usage and power transmission systems, providing reliable communication and motor control ‌.
