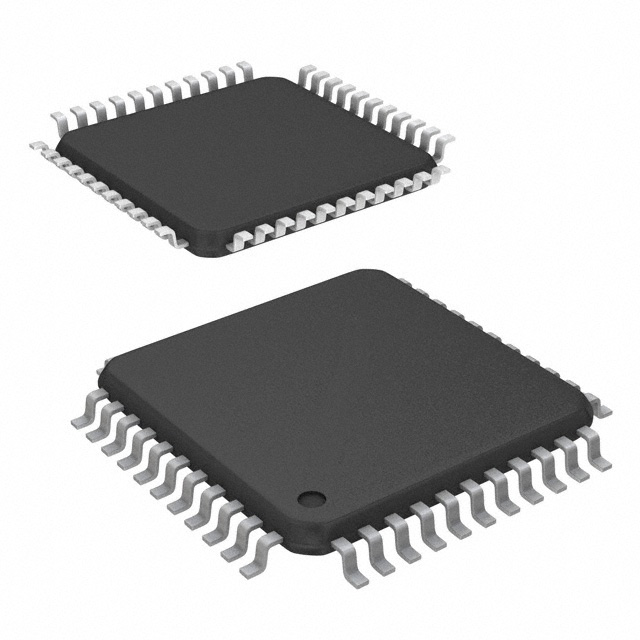

DSPIC33EV32GM004-I/PT (dsPIC™ 33EV DSC) 16-bit Digital Signal Controller, TQFP-44

Basic Information:

Model: DSPIC33EV32GM004-I/PT

Series: dsPIC™ 33EV

Package: TQFP-44

Type: Digital Signal Controller

DSPIC33EV32GM004-I/PT Specifications:

Product Category: Digital Signal Controllers - DSP, DSC

Product: DSCs

Core: dsPIC33E

Number of Cores: 1 Core

Maximum Clock Frequency: 70 MHz

Package / Case: TQFP-44

Program Memory Size: 32 kB

Data RAM Size: 4 kB

Operating Supply Voltage. 4.5 V to 5.5 V

Mounting style: SMD/SMT

Minimum operating temperature: - 40 °C

Maximum operating temperature: + 85 °C

Data bus width: 16 bit

Interface type: Serial

Number of inputs/outputs: 35 I/Os

DSPIC33EV32GM004-I/PT Features:

Operating Conditions

4.5V to 5.5V, -40ºC to +85ºC, DC to 70 MIPS

4.5V to 5.5V, -40ºC to +125ºC, DC to 60 MIPS

4.5V to 5.5V, -40ºC to +150ºC, DC to 40 MIPS

dsPIC33E core

Code-efficient (C and assembly) architecture

Two 40-bit wide accumulators

Single-cycle (MAC/MPY) with dual data fetch

Single-cycle, mixed-symbol MUL plus hardware division

Supports 32-bit multiplication

Provides a boot flash segment in addition to the existing normal flash segment

for Error Code Correction (ECC) for Flash

Adds two alternate register sets for fast context switching

Up to six Pulse Width Modulation (PWM) outputs (three generators)

Integrated Analogue Functionality

ADC can be configured as either 10-bit, 1. 1 Msps with four S&Hs or 12-bit, 500 ksps with one S&H

Up to 36 Analogue Inputs

Flexible, independent ADC trigger source

Up to Four op-amps/comparators connected directly to the ADC module:

Additional digital inputs
