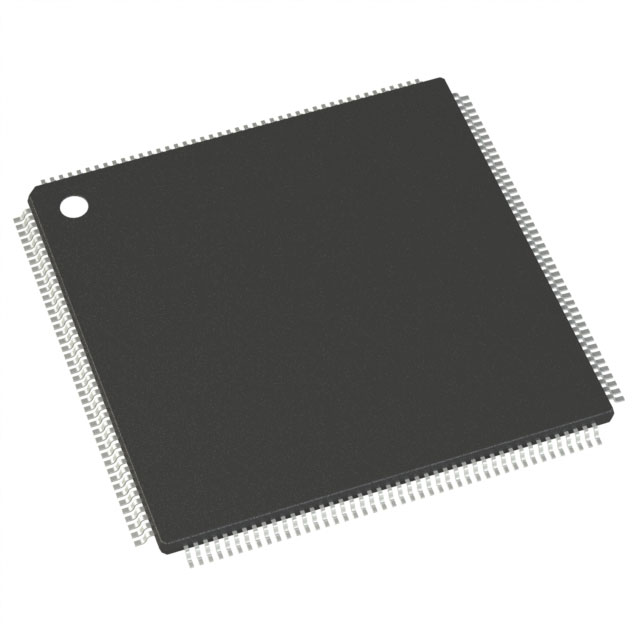

DSPIC33EP256MU814-E/PL: 16-bit dsPIC™ 33EP Digital Signal Controller with Dual Motor Control, LQFP-144

Product Details:

Model: DSPIC33EP256MU814-E/PL

Family: dsPIC™ 33EP

Package: LQFP-144

Type: Digital Signal Controller

DSPIC33EP256MU814-E/PL Specifications:

Core Processor: dsPIC

Core Specification: 16-bit

Speed: 60 MIPs

Number of I/Os: 122

Program Memory Capacity: 256KB (85.5K x 24)

Program Memory Type: Flash

RAM Size: 12K x 16

Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V

Data Converter: A/D 32x10b/12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/Case: 144-LQFP (20x20)

DSPIC33EP256MU814-E/PL Product Features:

Operating Conditions

3.0V to 3.6V, -40ºC to +125ºC, DC to 60 MIPS

3.0V to 3.6V, -40ºC to +85ºC, DC to 70 MIPS

dsPIC33E core

Modified Harvard architecture

C compiler-optimized instruction set

16-bit wide datapath

24-bit wide instructions

16x16 integer multiplication

32/16 and 16/16 integer division

11 additional instructions

Two 40-bit accumulators with rounding and saturation options

Flexible and Flexible and powerful addressing modes

Single-cycle multiplication and accumulation Cycle multiplication and accumulation

Single-cycle shifting of up to 40 bits of data

16x16 fractional multiplication/division

Motor control PWMs

Two master timebase modules for simultaneous control of dual 3-phase motors

Up to 7 PWM generators

Two PWM outputs per PWM generator

8. 32 ns PWM resolution
