The LTM4650AEV DC/DC μModule® regulator is a dual-channel 25A or single-channel 50A output power module. The LTM4650AEV includes a switch controller, power FETs, inductors and all supporting components. External compensation allows for a fast transient response to minimize the output capacitance when powering the FPGA, ASIC and processor.

Its main characteristics

Dual-channel 25A or single-channel 50A output

Input voltage range: 4.5V to 16V

Output voltage range: 0.6V to 5.5V

It has a maximum total DC output error of ±1% across the entire voltage, load and temperature range

Compared with LTM4650-1, LTM4650AEV has a higher light-load efficiency and a wider VOUT range

Differential remote sampling amplifier

Current mode control/fast transient response

It can achieve multi-phase parallel current sharing (up to 300A)

Internal temperature monitor

Pin-compatible with LTM4620A (dual-channel 13A, single-channel 26A) and LTM4630A (dual-channel 18A, single-channel 36A)

Adjustable switching frequency or synchronization

Overcurrent return protection

Optional Burst Mode® operation and pulse jump mode operation

Soft start/voltage tracking

Output overvoltage protection

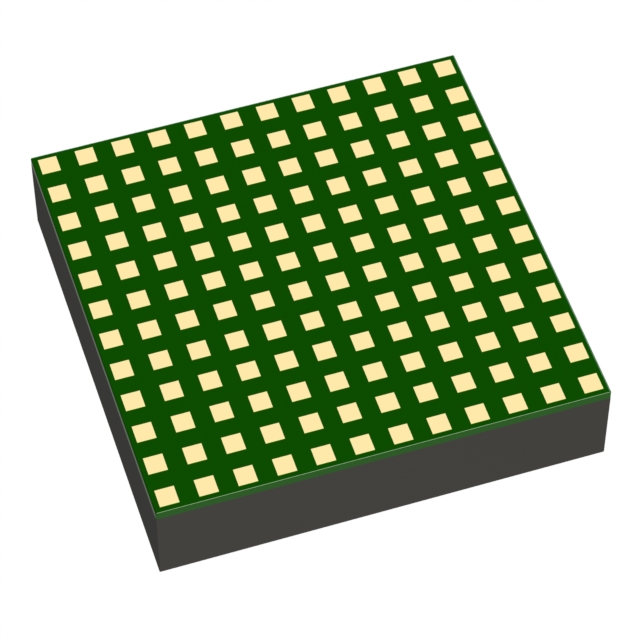

16mm x 16mm x 4.41mm LGA package

Target application

Telecommunication and network equipment

Storage and ATCA card

Industrial equipment
