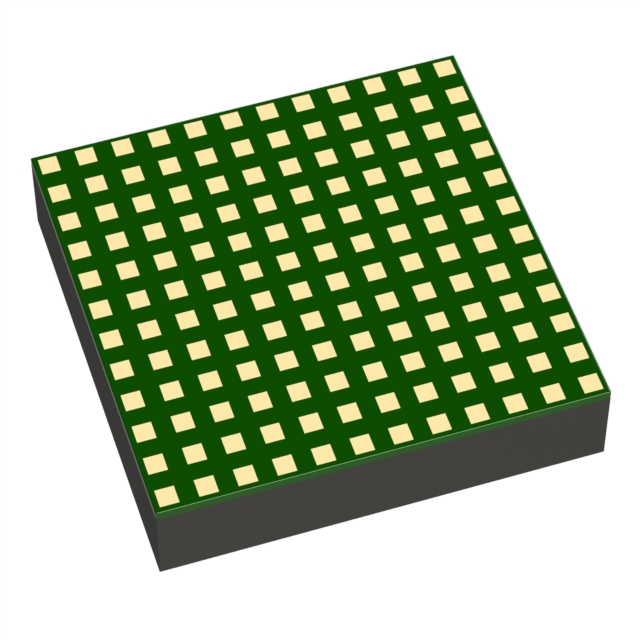

The LTM4650AIV is a dual-channel 25A or single-channel 50A output switch-mode step-down DC/DC μModule® (micro module) regulator with a total DC output error of ±1%. The package is built-in with a switch controller, power FET, inductor and all supporting components. The LTM4650AIV can operate within an input voltage range of 4.5V to 16V and supports two output voltages ranging from 0.6V to 5.5V (each set by a single external resistor).

Main specifications

Topological structure: Buck

Output voltage: 600 mV to 5.5 V

Output current: 25A, 25A

Number of Output terminals: 2 Output

Input voltage - Minimum: 4.5V

Input voltage - Maximum value: 16 V

Static current: 115 mA

Switching frequency: 250 kHz to 780 kHz

Operating temperature: -40°C to 125°C

Package/Box: LGA-144

In addition, the LTM4650AIV has ±1% total DC output error and is suitable for applications requiring high stability power supply ‌, including:

Telecommunication and network equipment

Storage and ATCA card

Industrial equipment
