The AD8627AKSZ is a single-supply, precision JFET input amplifier featuring low power consumption and rail-to-rail output capabilities. The output remains stable even when the capacitive load exceeds 500 pF; each amplifier draws less than 900 µA of supply current.

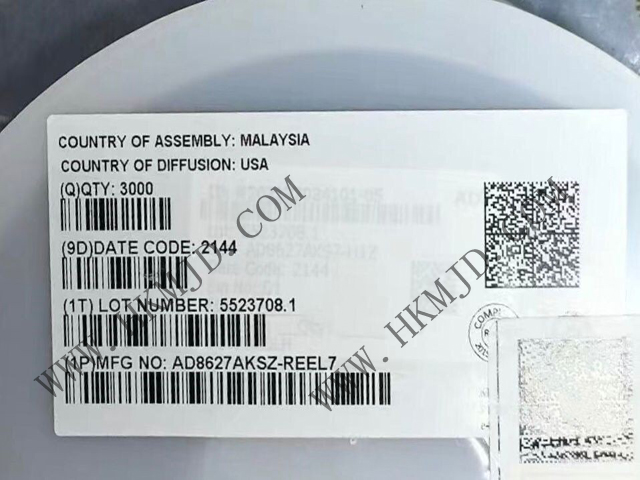

The AD8627AKSZ is rated for an extended industrial temperature range of -40 °C to +125 °C and is available in a 5-pin SC70 package. SC70 package devices are only available in tape and reel form.

AD8627AKSZ Features

SC70 package

Extremely low input bias current: 1 pA (maximum)

Single-supply operation: 5 V to 26 V

Dual-supply operation: ±2.5 V to ±13 V

Rail-to-rail output

Low supply current: 750 µA per amplifier

Low offset voltage: 500 µV (maximum)

Unit-gain stable

Non-inverting

AD8627AKSZ Product Attributes

Number of channels: 1 channel

GBP - Gain-bandwidth product: 5 MHz

SR - Slew rate: 5 V/us

Vos - Input bias voltage: 350 uV

Ib - Input bias current: 60 pA

Supply voltage - Maximum: 26 V, 13 V

Minimum Supply Voltage:    5 V, 2.5 V

Operating Supply Current:    710 uA

Output Current per Channel:    15 mA

CMRR - Common-Mode Rejection Ratio:    105 dB

en - Input Voltage Noise Density:    17.5 nV/sqrt Hz

Package/Enclosure:    SC-70-5

Mounting style:    SMD/SMT

Shutdown:    No Shutdown

Minimum operating temperature:    -40°C

Maximum operating temperature:    +85°C

AD8627AKSZ Applications

Photodiode amplifiers

Automatic test equipment (ATE)

AC-powered/battery-powered instruments

Industrial control systems

Automotive sensors

Precision filters

Audio equipment
