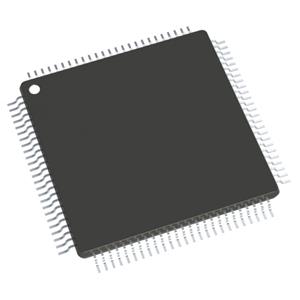

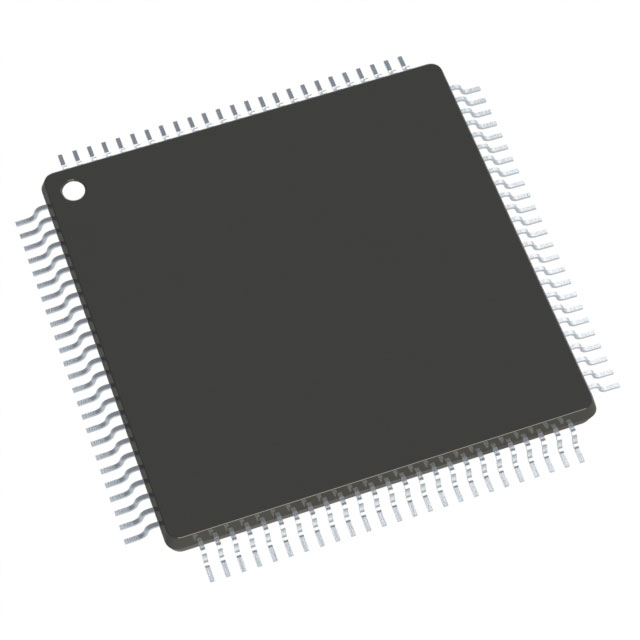

DSPIC33FJ64GS610-E/PF: High Performance 16-bit dsPIC™ 33F Digital Signal Controller (DSC), TQFP-100

Model: DSPIC33FJ64GS610-E/PF

Series: dsPIC™ 33F

Package: TQFP-100

Type: Digital Signal Controller (DSC)

The DSPIC33FJ64GS610-E/PF supports common multi-circuit digital switched-mode power supplies (SMPSs) and other digital power conversion applications, such as AC to DC converters, DC to DC converters, power factor correction, and power supply management. to DC converters, power factor correction (PFC), uninterruptible power supplies (UPS), inverters, embedded power controllers, and more.

DSPIC33FJ64GS610-E/PF Features:

Operating Conditions

3.0V to 3.6V, -40ºC to +85ºC, DC to 50 MIPS

3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS

Core: 16-bit dsPIC33F

Code-efficient (C and assembly) architecture

Two 40-bit wide accumulators

Single-cycle (MAC/MPY) with dual data fetch

Single-cycle mixed-symbol MUL plus hardware division

32-bit multiplication support

Clock management

±1% internal oscillator

Programmable PLL and oscillator clock source Fail-safe clock source and oscillator clock sources

Fail-safe clock monitor (FSCM)

Stand-alone watchdog timer (WDT)

Fast wake-up and start-up

Power management

Low-power management modes (sleep, idle, snooze) Integrated power management Idle, snooze)

Integrated power-up reset and undervoltage reset

1. 7 mA/MHz Dynamic current (typ.)

50 µA IPD current (typ.)
