Trade Name:PIN Diode
Brand:Skyworks
Particular Year:25+
Package:QFN-3
Delivery Date:New and Original
Stock: 6000pcs

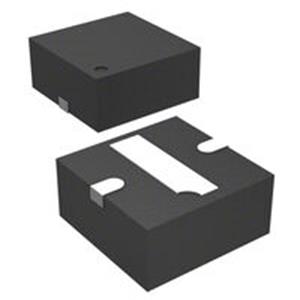

CLA4603-085LF is a surface-mount (SMT) low-capacitance silicon PIN limiting diode designed for high-frequency, high-power limiting applications from 10 MHz to 6 GHz. The device is packaged in a 3-QFN (2x2mm) package, featuring ultra-low junction capacitance (0.4pF @6V) and low series resistance (2Ω @10mA), making it suitable for RF front-end protection circuits in 5G base stations, radar systems, satellite communications, and other applications.
Key Features (CLA4603-085LF)
Operating Frequency: 10MHz to 6GHz, suitable for 5G/millimetre wave applications.
Low Junction Capacitance: 0.4pF @6V, reducing signal distortion.
Low Series Resistance: 2Ω @10mA, enhancing power handling capability.
Peak Reverse Voltage: 45V, suitable for high-power RF protection.
Maximum current: 1.5A, supporting large signal limiting.
Maximum power consumption: 2W, ensuring stable operation in high-temperature environments.
Operating temperature range: -40°C to +175°C (TJ), suitable for harsh environments.
Compliant with RoHS standards, lead-free and environmentally friendly.
Technical specifications (CLA4603-085LF)
Package: 3-QFN (2x2mm)
Peak reverse voltage: 45V
Maximum current: 1.5A16
Junction capacitance (@6V, 1MHz): 0.4pF
Series resistance (@10mA): 2Ω
Maximum power dissipation: 2W
Operating temperature: -40°C to +175°C (TJ)
Applications (CLA4603-085LF)
• Low-loss, high-power limiter
• Receiver protector
