CLA4606-085LF is a surface-mount, low-capacitance silicon PIN limiter diode designed for high-power limiting applications from 10 MHz to over 6 GHz, used as a parallel-connected PIN diode.

At 10 mA, the maximum resistance is 2 Ω, and at 6 V, the maximum capacitance is 0.38 pF. The combination of low junction capacitance, low parasitic inductance, low thermal resistance, and a nominal I-region width of 2.5 μm makes the CLA4606-085LF practical for large-signal limiting applications. The threshold level is +12 dBm, nominal.

Applications Of CLA4606-085LF

• Low-loss, high-power limiters

• Receiver protectors

Features Of CLA4606-085LF

• Low thermal resistance: 91 °C/W

• Typical threshold level: +10 dBm @ 2.5 GHz

• Low capacitance: 0.3 pF

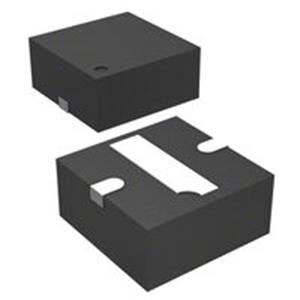

• Low-profile, ultra-small QFN package (3 pins, 2 x 2 mm) (MSL1, 260 °C, compliant with JEDEC J-STD-020 standard)

CLA4606-085LF Parameters

Product Type: PIN Diode

Vr - Reverse voltage:    75 V

Maximum diode capacitance:    0.38 pF

Maximum series resistance (at maximum intermediate frequency):    2 Ohms

Minimum operating temperature:    -40 °C

Maximum operating temperature:    +150 °C

Minimum operating frequency:    10 MHz

Maximum operating frequency:    6 GHz

Package/Case:    QFN-3

Series:    CLA4606

Carrier Lifetime:    10 ns

Maximum Series Resistance (at Minimum Intermediate Frequency):    2 Ohms

Pd-Power Dissipation:    3 W
