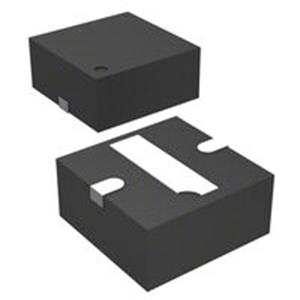

CLA4605-085LF is a surface mount (SMT) PIN clamping diode primarily used for high-frequency radio frequency (RF) signal clamping and protection. The device is housed in a 3-QFN (2x2mm) package, featuring ultra-low junction capacitance (0.45pF @6V) and low series resistance (2Ω @10mA), making it suitable for high-power RF applications such as 5G base stations, radar systems, and satellite communications.

Features

High-frequency performance

Operating frequency: 10MHz to 6GHz

Low capacitance: 0.45pF @6V, 1MHz

Low resistance: 2Ω @10mA, 500MHz

High power handling capability

Peak reverse voltage: 60V

Maximum current: 1.5A

Maximum power dissipation: 1W

Industrial-grade reliability

Operating temperature: -40°C to +175°C (TJ)

RoHS compliant, lead-free and environmentally friendly

Product Attributes

Product Type: PIN Diode

Vr - Reverse Voltage: 60 V

Maximum Diode Capacitance: 0.33 pF

Maximum Series Resistance (at Maximum Intermediate Frequency):    2 Ohms

Minimum Operating Temperature:    -40°C

Maximum Operating Temperature:    +150°C

Minimum Operating Frequency:    10 MHz

Maximum Operating Frequency:    6 GHz

Package/Case:    QFN-3

Series:    CLA4605

Carrier Lifetime:    7 ns

Maximum Series Resistance (at Minimum Intermediate Frequency):    2 Ohms

Pd-Power Dissipation:    3 W

Applications

• Low-loss, high-power limiter

• Receiver protector
