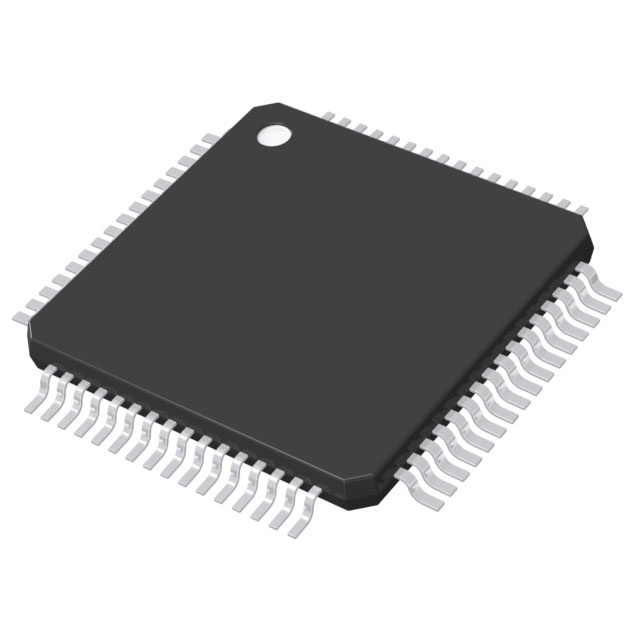

DSPIC33FJ64GS406-I/PT: 40MIP, 16-bit dsPIC™ 33F Digital Signal Controller (DSC), TQFP-64

The DSPIC33FJ64GS406-I/PT supports common multi-loop digital switched-mode power supplies (SMPS) and other digital power conversion applications such as AC to DC converters, DC to DC converters, power factor correction (PFC), uninterruptible power supplies (UPS), inverters, embedded power controllers, circuit breakers, and more.

DSPIC33FJ64GS406-I/PT Product Features:

Operating Conditions

3.0V to 3.6V, -40ºC to +85ºC, DC to 50 MIPS

3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS

Core: 16-bit dsPIC33F

Code-Efficient (C and Assembly) Architecture

Two 40-bit wide accumulators

Single-cycle (MAC/MPY) with dual data fetch

Single-cycle mixed-symbol MUL plus hardware division

Supports 32-bit multiplication

Clock Management

±1% Internal Oscillator

Programmable PLL and Oscillator Clock Source

Fail Safe Clock Monitor (FSCM)

Standalone Watchdog Timer (WDT)

Fast Wake-Up and Start-Up

Power Management

Low Power Management Modes (Sleep, Idle, Snooze) Integrated Power Management Idle, Snooze)

Integrated Power-Up Reset and Undervoltage Reset

1. 7 mA/MHz Dynamic Current (Typical)

50 µA IPD Current (Typical)

High-Speed PWM

Up to 9 PWM Pairs with Independent Timed PWM pairs

Rising and falling edge dead time

1.04 ns PWM resolution

PWM support: DC/DC, AC/DC, Inverter, PFC, Lighting, BLDC, PMSM, ACIM, SRM

Programmable Fault Inputs

Flexible Flip-Flop Configuration for ADC Conversion
