Trade Name:NOR Flash
Brand:INFINEON
Particular Year:25+
Package:BGA-24
Delivery Date:New and original
Stock: 2000pcs

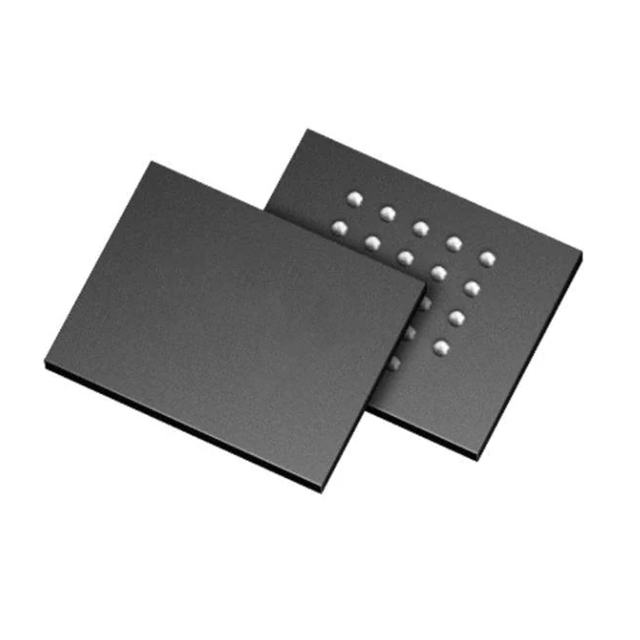

S25FL128LAGBHV020 is a non-volatile four-channel SPI NOR flash memory product manufactured by Infineon, belonging to the FL-L series. This chip has the following main characteristics:
Partition size: Uniform 4 KB
SPI clock rate with SDR selection: 133 MHz
SPI clock rate with DDR selection: 66 MHz
Temperature range: -40°C to 105°C
100,000 programs/erasure cycles
A 20-year data retention period
Read bandwidth: 67 MBps
Page programming time: 300 μs
Partition erasure time (typical value) : 50 ms, 4 KB erasure
Power:
Supply voltage: 2.7V to 3.6V
30 mA active current (typical value)
20 µA standby current (typical value)
2 μA Idpd2 (typical value)
The S25FL128LAGBHV020 memory performs data reading, writing and erasing operations through four data lines (I0, I1, I2, I3). Compared with the traditional SPI interface, QSPI offers a higher data transmission rate and greater bandwidth. In addition, the S25FL128LAGBHV020 performs well in devices that require long-term data retention due to its high reliability and long life .
Model
Brand
Package
Quantity
Describe
INFINEON
BGA-24
3000
FLASH - NOR Memory IC 256Mb SPI - Four I/O 133 MHz 24-BGA (8x6)
