The ADHV4710BSVZ operational amplifier is designed to drive capacitor and resistor loads up to ±1A (±1300V/μs). These high-voltage, high-power and high-speed operational amplifiers are highly suitable for high-voltage applications such as automated test equipment (ATE), programmable power supplies and piezoelectric drives.

Key Features

High output capacity

When IOUT = ±100mA, the output voltage range can be as high as ±52V

±1A continuous high output current drive

High voltage slew rate: ±1300V/μs (driving a 1nF load)

Fault protection and monitoring, featuring digital programmable current, voltage and thermal shutdown limits

The design selection process is friendly

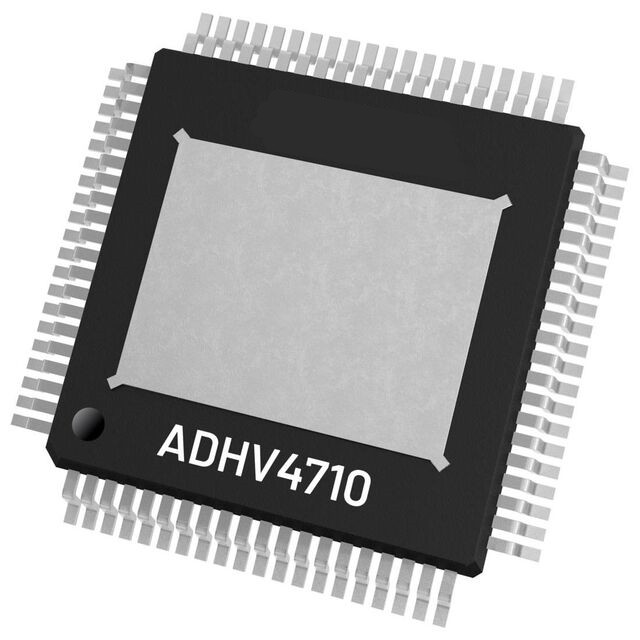

80-pin, 12mm x 12mm TQFP package

Exposed pad up (EPAD-up) package, used for installing heat sinks

Wide high-voltage power supply voltage range: ±12V to ±55V

Low quiescent current: 12 mA

Extensive configurability

Infinite capacitive load stability, with external compensation and output conversion rate limitations

Due to the external transconductance resistor RSLEW, stability can be maintained at any gain and adjustable slew rate

Programmable power supply current with on-off mode

Operating temperature range: -40 °C to +85 °C

Application scenarios

The ADHV4710BSVZ amplifier is suitable for a variety of application scenarios, including:

High-voltage power amplifier (PA

High-voltage SMU/VI power supply

High-voltage arbitrary waveform Generator (AWG

Piezoelectric transducer driver

Programmable power supply
