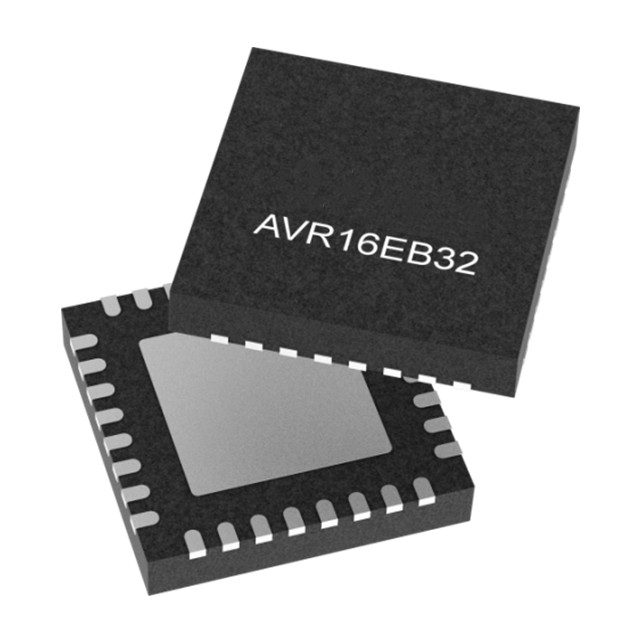

The AVR16EB32T-I/RXB microcontroller adopts the AVR architecture, with an operating frequency up to 20MHz, and supports single-cycle I/O access and dual-level interrupt controllers. This MCU is equipped with 16KB of built-in flash memory (supporting read and write operations), 2KB of SRAM and 512B of EEPROM. The AVR16EB32T-I/RXB MCU complies with IEC 60730 (Class B), ISO 26262 (ASIL), and IEC 61508 (SIL) standards, and is suitable for safety-critical fields such as automobiles, industrial control, and household appliances.

Main specifications

Core processor: AVR

Kernel specification: 8 bits

Speed: 20MHz

Connection capabilities: I2C, IrDA, SMBus, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O number: 27

Program storage capacity: 16KB (16K x 8)

Program memory type: Flash memory

EEPROM capacity: 512 x 8

RAM size: 2K x 8

Voltage - Power supply (Vcc/Vdd) : 1.8V to 5.5V

Data converter: A/D 24x12b

Oscillator types: external, internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 32-VQFN (5x5)

Application scenarios

The AVR16EB32T-I/RXB single-chip microcomputer is suitable for scenarios such as home appliance control, automotive electronics, and industrial automation that require high reliability and functional safety guarantees.
