The LTC3534EDHC is a wide VIN range, high-efficiency, fixed-frequency, step-boost type DC/DC converter that can operate normally when the input voltage is higher, lower or equal to the output voltage. The topology adopted by this IC can provide a continuous conversion function through all operation modes, making this product highly suitable for multi-cell alkaline/nickel-metal-hydride (NiMH) battery or single-cell lithium-ion/lithium-polymer battery applications where the output voltage is within the battery voltage range.

The main parameters of LTC3534EDHC include:

Function: Boost/Drop pressure

Output configuration: Positive

Topology: Step-down and step-up

Output type: Adjustable

Output number: 1

Voltage - Input (minimum) : 2.4V

Voltage - Input (maximum value) : 7V

Voltage - Output (minimum/Fixed) : 1.8V

Voltage - Output (maximum value) : 7V

Current - Output: 500mA

Frequency - Switch: 1MHz

Synchronous rectifier: Yes

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

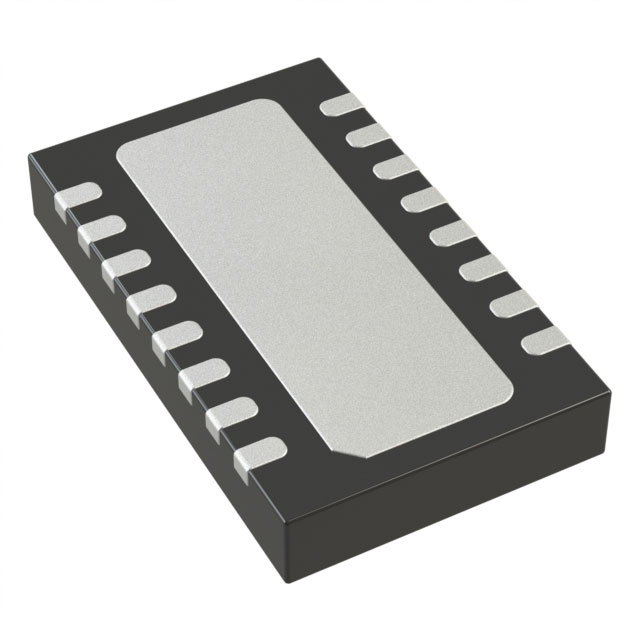

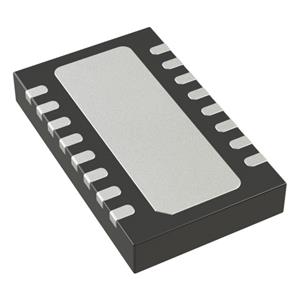

Package/Housing: 16-DFN

In addition, the LTC3534EDHC is suitable for a variety of application scenarios, including portable devices, battery-powered systems, etc. Its high performance and low quiescent current characteristics make it perform well in extending battery life.
