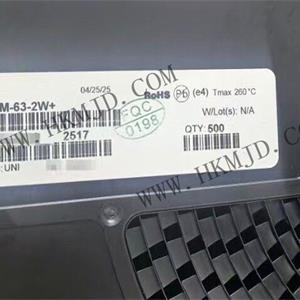

The RLM-63-2W is a wideband RF limiter with an operating frequency range of 30MHz to 6GHz, RoHS compliant, and is available in a TT1224 package with 6 pins.

RLM-63-2W Features

Wideband frequency range: 30 to 6000 MHz, covering a wide range of RF applications.

Low insertion loss: 0.3 dB typical, ensuring low loss during signal transmission.

Fast recovery time: 5 nanoseconds typical, the large signal disappears and quickly returns to a low insertion loss state, ensuring high efficiency and continuity of signal transmission.

Excellent VSWR: 1.2:1 typical, helps to reduce signal reflection and improve signal transmission efficiency.

Low Output Power: 11.5dBm typical to protect the back-end circuits from overload damage.

High Input Power Handling Capability: Handles up to 32dBm of input power and maintains stable operation during large signal inputs.

Low Insertion Loss at Small Signal Inputs: Low insertion loss at small signal inputs ensures signal integrity.

High Insertion Loss at Large Signal Input : At large signal input, the insertion loss increases, which plays the role of amplitude limiting protection.

RLM-63-2W Specifications

Operating frequency range : 30MHz to 6GHz

Insertion loss : Typical 0.3dB.

Input power: 12dBm min, 32dBm max.

Output Power Limit: 11.5dBm typical.

Limit ∆ Output / ∆ 1dB Input: 0.4dB/dB typical.

VSWR: Typical 1.2:1

Recovery time: 5 ns typical

Operating temperature: -40°C to 85°C.

Storage temperature: -45°C to 100°C.

Package: TT1224, 6-pin

Applications

Military, high and low voltage applications

Stabilises generator output

Reduces amplitude variations

Protects low-noise amplifiers and other equipment from electrostatic discharge or input power damage
