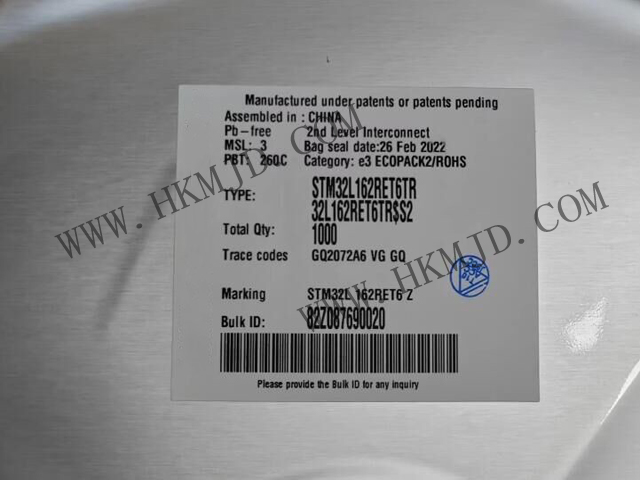

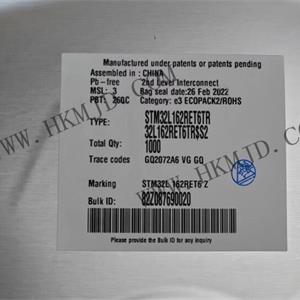

For picture reference, please see the specifications
< >

Commodity Model:STM32L162RET6TR

Trade Name:32-bit Microcontroller - MCU

Brand:ST

Particular Year:22+

Package:LQFP-64

Delivery Date:New and Original

Stock: 1800pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ST
Model
STM32L162RET6TR
Package
LQFP-64
Describe
ARM® Cortex®-M3 STM32L1 Microcontroller IC 32-bit Single Core 32MHz 512KB (512K x 8) Flash 64-LQFP (10x10)

Product Description

The STM32L162RET6TR is an ultra-low power 32-bit microcontroller designed on the ARM Cortex-M3 core and optimised for high performance and low power applications.


STM32L162RET6TR Core and Performance

Processor: ARM Cortex-M3 32-bit CPU up to 32MHz with 1.25 DMIPS/MHz performance (Dhrystone 2.1).

Memory: 512KB Flash memory (supports ECC checksum), 80KB RAM and 16KB true EEPROM, providing rich data storage space.

Ultra-low power consumption features

Power supply range: 1.65V to 3.6V for battery-powered devices.

Power consumption modes:

Standby mode (3 wake-up pins): 290nA only.

Stop mode (16 wake-up pins): as low as 1.4μA.

Run mode: 195μA/MHz.

Fast wake-up: 8μs wake-up time, suitable for real-time response applications.

Rich peripherals and interfaces

Communication interface: Support USB 2.0, USART, SPI, I2C, IrDA and LIN bus, providing flexible connection options.

Analogue peripherals:

12-bit ADC (1Msps, up to 40 channels).

2 12-bit DACs.

2 operational amplifiers and 2 ultra-low power comparators.

LCD driver: Supports up to 8x40 segment LCD display with built-in contrast adjustment and boost converter.

Security and Encryption

Hardware encryption: Integrated AES 128-bit encryption accelerator to enhance data security.

Protection mechanism: Supports power-off reset (BOR), programmable voltage detector (PVD) and memory protection unit (MPU).

Package and Operating Environment

Package: 64-pin LQFP (10x10mm) for surface mount design.

Operating temperature: -40°C to 85°C for industrial grade applications.


STM32L162RET6TR Parameters

Core: ARM® Cortex®-M3 32-bit CPU operating at up to 32MHz with performance up to 1.25 DMIPS/MHz (Dhrystone 2.1)

Storage:

512KB Flash with ECC (2 rows of 256KB with read/write capability enabled).

80KB RAM

16KB true EEPROM with ECC.

128-byte backup register

Operating Voltage: 1.65V to 3.6V


STM32L162RET6TR Application Areas

Suitable for low-power scenarios such as portable medical devices, industrial sensors, smart meters, touch-sensitive devices and Internet of Things (IoT) nodes.
