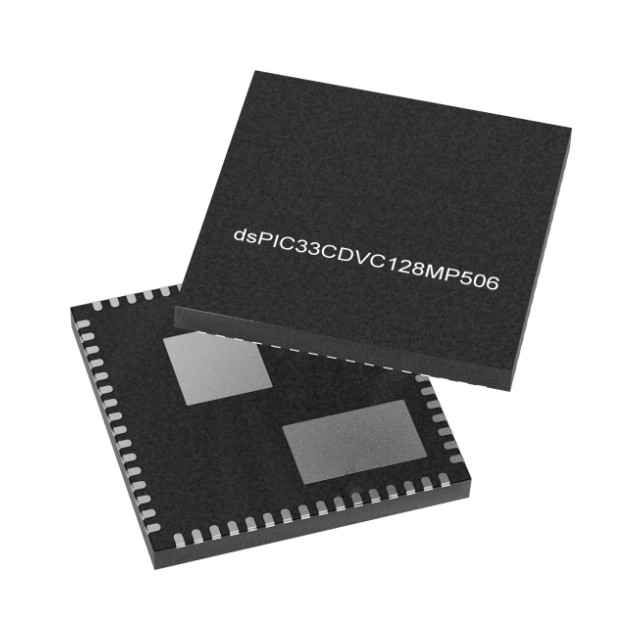

The DSPIC33CDVC128MP506-E/M9 integrated motor driver combines a digital signal controller (DSC) with a full-bridge MOSFET gate driver designed for 3-phase BLDC motor control and a CAN transceiver for automotive communication. Its technical parameters and application scenarios are as follows:

Technical parameters

Core processor: dsPIC

Kernel specification: 16 bits

Speed: 100MIPs

Connection capabilities: CANbus, I2C, QEI, SENT, SPI, UART/USART

Peripherals: Power failure detection/reset, DMA, I2S, motor control PWM, POR, PWM, WDT

I/O number: 29

Program storage capacity: 128KB (43K x 24)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 16K x 8

Voltage - Power Supply (Vcc/Vdd) : 3V to 3.6V

Data converter: A/D 20x12b SAR D/A 3x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount, wettable side wings

Device packaging: 64-VGQFN (9x9)

Application scenarios

The DSPIC33CDVC128MP506-E/M9 is suitable for a variety of scenarios that require efficient processing and control, including but not limited to:

Industrial Control ‌ : For all kinds of industrial equipment that requires precise control.

Automotive electronics ‌ : available for automotive electronic control systems such as sensor data processing and motor control.

Communication equipment ‌ : Widely used in communication equipment that requires high-speed data processing and communication.

The dsPIC 33CDVC128MP506-E/M9 100MHz dsPIC® DSC features a DSP, advanced motor-controlled PWM, a 12-bit analog-to-digital converter, and an integrated operational amplifier and comparator. It is designed to operate field-oriented control (FOC) to achieve maximum energy efficiency and the lowest system cost.
