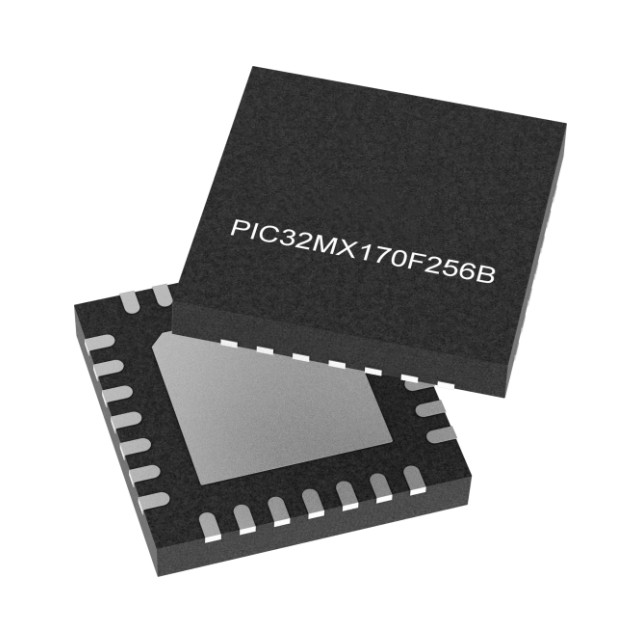

The PIC32MX170F256B-50I/ML microcontroller is a 32-bit microcontroller launched by Microchip, which combines low cost, high performance and large memory configuration, and is suitable for a variety of embedded application scenarios. Its characteristics and main specifications are as follows:

Feature:

The MIPS32 M4K® core with a performance of up to 120MHz/150DMIPS

Up to four SPI/I2S interfaces for audio processing and playback

USB device/host /OTG

CAN 2.0B with a bit rate of 1Mbps is suitable for industrial/automotive applications

Enhanced parallel Master Port (PMP) for graphics or external memory

Supports mTouch® capacitive touch buttons and sliders

Up to five UArts, three analog comparators and two I2C™ buses

10-bit, 1Msps, 48-channel ADC

Peripheral Pin Selection (PPS) support function remapping

Main specifications

Core processor: MIPS32® M4K™

Kernel specification: 32-bit single-core

Speed: 50MHz

Connection capabilities: I2C, IrDA, LINbus, SPI, UART/USART

Peripherals: Power failure detection/reset, DMA, I2S, POR, PWM, WDT

I/O number: 21

Program storage capacity: 256KB (256K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 64K x 8

Voltage - Power Supply (Vcc/Vdd) : 2.3V - 3.6V

Data converter: A/D 10x10b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 28-QFN (6x6)

The PIC32MX170F256B-50I/ML microcontroller (MCU) not only has low cost, but also combines 32-bit performance, large memory configuration and a rich set of integrated peripherals, which can meet the needs of the embedded application field, ranging from simple general embedded control to more advanced audio, connection and graphics embedded applications, and so on.
