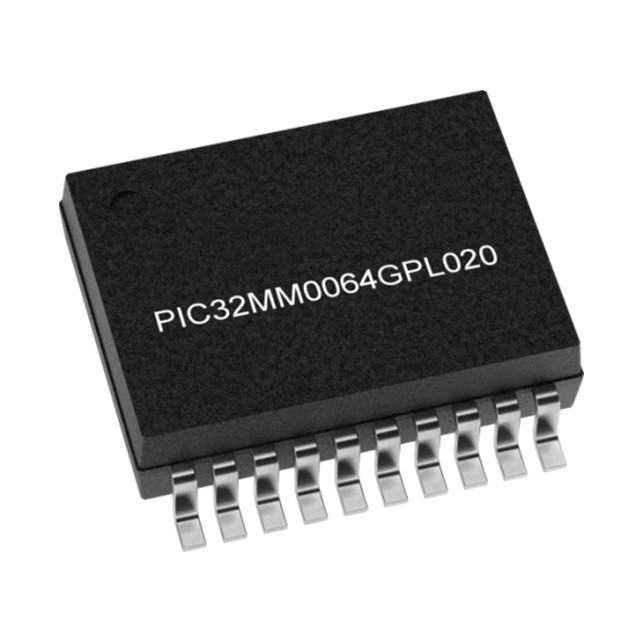

The PIC32MM0064GPL020-E/SS microcontroller is a low-power and cost-effective 32-bit PIC32 microcontroller launched by Microchip. Its main application scenarios include:

1. Low power and wireless field ‌ : For IoT sensor nodes, remote data acquisition and transmission, networked thermostats/environmental monitors, portable medical devices and remote control systems, etc. ‌. ‌

2. Consumer applications ‌ : such as game consoles, providing a smooth gaming experience ‌.

3. Motor control ‌ : The PIC32MM series is also well-suited for sensorless BLDC motor control applications ‌ due to its built-in peripherals and low power consumption.

Technical parameters

Core processor: MIPS32® microAptiv™

Kernel specification: 32-bit single-core

Speed: 25MHz

Connection capabilities: Power failure detection/reset, HLVD, I2S, POR, PWM, WDT

Peripherals: Power failure detection/reset, HLVD, I2S, POR, PWM, WDT

I/O number: 16

Program storage capacity: 64KB (64K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 8K x 8

Voltage - Power Supply (Vcc/Vdd) : 2V to 3.6V

Data converter: A/D 11x10/12b D/A 1x5b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Device packaging: 20-SSOP

The PIC32MM is the first device in the PIC32 series to feature an independent core peripheral. It is designed to reduce CPU usage and create a low-power and energy-efficient system design. The PIC32MM0064GPL020-E/SS device is supported by Microchip's MPLAB® Code Configurator (MCC), which helps simplify and accelerate the design.
