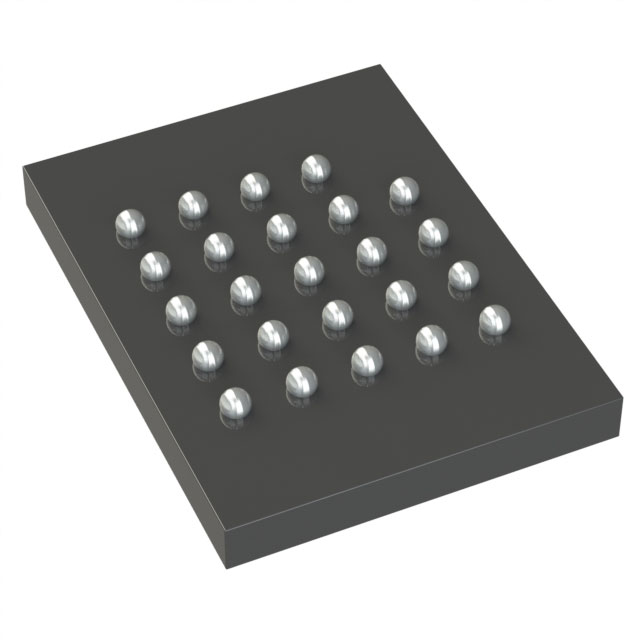

S27KS0643GABHI023 device is a high-speed CMOS, self-refresh DRAM, with xSPI (Octal) interface. The DRAM array uses dynamic cells that require periodic refresh. Refresh control logic within the device manages the refresh operations on the DRAM array when the memory is not being actively read or written by the xSPI interface master (host). Since the host is not required to manage any refresh operations, the DRAM array appears to the host as though the memory uses static cells that retain data without refresh. Hence, the memory is more accurately described as Pseudo Static RAM (PSRAM).

Feature Of S27KS0643GABHI023

xSPI (Octal) interface

1.8V/ 3.0 V interface support

Single ended clock (CK)- 11 bus signals

Optional differential clock (CK, CK#) - 12 bus signals

Chip select (CS#)

8-bit data bus (DQ[7:0])

Hardware reset (RESET#)

Bidirectional read-write data strobe (RWDS)

Output at the start of all transactions to indicate refresh latency

Output during read transactions as read data strobe

Input during write transactions as write data mask

Optional DDR center-aligned read strobe (DCARS)

During read transactions RWDS is offset by a second clock, phase shifted from CK

The phase shifted clock is used to move the RWDS transition edge within the read data eye

200 MHz maximum clock rate

DDR - transfers data on both edges of the clock

Data throughput up to 400 MBps (3,200 Mbps)

Configurable burst characteristics

Hybrid option - one wrapped burst followed by linear burst

Configurable output drive strength
