Trade Name:NOR Flash
Brand:INFINEON
Particular Year:25+
Package:BGA-24
Delivery Date:New and Original
Stock: 2000pcs
The Infineon S25FL512SAGBHVB10 NOR Flash devices are VIO VCC 2.7V to 3.6V Flash non-volatile memory devices. The devices are based on 65nm MirrorBit technology. Designed on the Eclipse™ architecture with a 512-byte page programming buffer, the 512-Mb S25FL512SAGBHVB10 NOR allows users to program up to 256 words (512 bytes) in a single operation. As a result, the device is efficiently programmed and erased faster than previous-generation SPI programming or erasure algorithms. The device interfaces with the host system via SPI and supports traditional SPI single bit serial inputs and outputs. Optional two-bit (dual I/O or DIO) and four-bit (quad I/O or QIO) serial commands are available.The S25FL512SAGBHVB10 NOR supports SIO, DIO, and QIO double data rate read commands for the transfer address.
S25FL512SAGBHVB10 Product Attributes
Manufacturer: Infineon
Product Category: NOR Flash Memory
Mounting Style: SMD/SMT
Package / Case: BGA-24
Series: S25FL512S
Memory capacity: 512 Mbit
Supply voltage - min: 2.7 V
Supply voltage - max: 3.6 V
Active read current (max): 90 mA
Interface type: SPI
Maximum clock frequency: 133 MHz
Organisation: 64 M x 8
Data bus width: 8 bit
Timing type: Synchronous
Minimum operating temperature: - 40 C
Maximum operating temperature: + 105 C
Memory Type: NOR
Humidity Sensitivity: Yes
Product Type: NOR Flash
Speed: 133 MHz
Model
Brand
Package
Quantity
Describe
INFINEON
BGA-24
2000
FLASH - NOR Memory IC 512Mb SPI - Quad I/O 66 MHz 24-BGA (8x6)
A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.
A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.
A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.
A: You can inquire through the website, or by phone and email.
A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.
A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
Infineon Technologies was formally established on April 1, 1999 in Munich, Germany, and is one of the worlds leading semiconductor companies. Its predecessor was the semiconductor division of Siemens Group, which became independent in 1999 and went pu…
SAK-TC1791F-512F240EP AB
The TC1791 is a high performance microcontroller with a TriCore CPU, program and data memory, bus, bus arbitration, interrupt controller, peripheral control processor and DMA controller and several on-chip peripherals.The TC1791 is designed to meet th…IPD70R600P7S

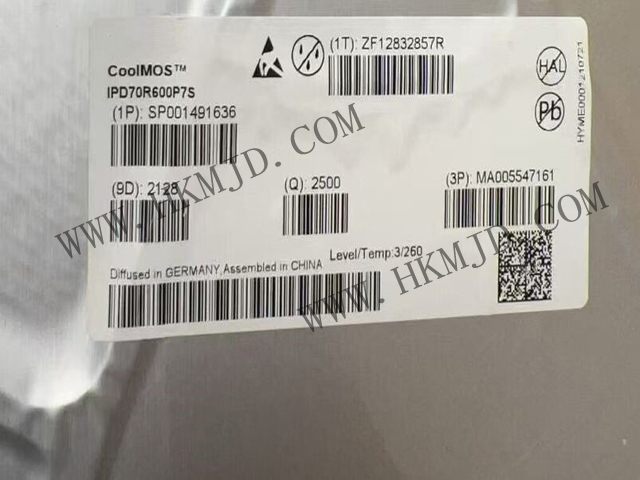

The IPD70R600P7S is a high-performance N-channel power MOSFET belonging to the CoolMOS™ P7 series in a TO-252-3 (DPAK) package for high-voltage, high-frequency switching applications such as power adapters, chargers, industrial power supplies, and mo…S6E2H46G0AGB3000A
