The S912ZVC12F0MKH is a 16-bit MagniV microcontroller IC, the smallest integrated LIN slave MCU, highly resistant to EMI and ESD stress, LIN 2.x compliant, and has +/- 8kV ESD capability.

Product Attributes

Core Processor: S12Z

Core specification: 16-bit

Speed: 32MHz

Connectivity: CANbus, I²C, SCI, SPI

Peripherals: DMA, POR, PWM, WDT

Number of I/O: 42

Program memory capacity: 128KB (128K x 8)

Programme memory type: Flash

EEPROM Capacity 2K x 8

RAM Size: 8K x 8

Voltage - Supply (Vcc/Vdd): 3.5V ~ 40V

Data Converter: A/D 16x10b; D/A 1x8b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

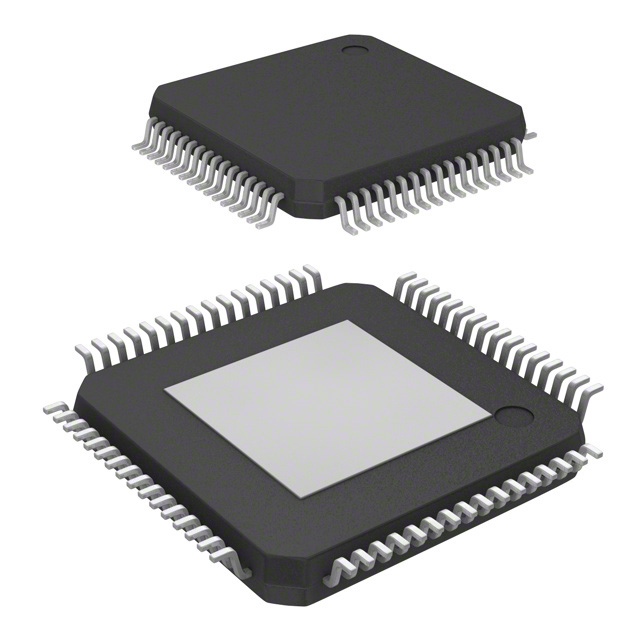

Package/Housing: 64-LQFP Exposed Pad

Supplier Device Package: 64-LQFP (10x10)

Product Features

Powered by Automotive Battery

Integrated LIN Transceiver

Ultra-Reliable Industrial Grade

Fast ADC

Target Applications

LIN Node

LIN Switch Panels/User Interfaces

LIN Actuators, Sensors

HVAC

Lighting control

Ambient Lighting

Seat positioning

Ultrasonic Sensors
