The S9S12VR16F0MLCR is a family of 16-bit automotive microcontrollers optimised for low cost, high performance and low pin count. It integrates an S12 microcontroller with a LIN physical interface, a 5V regulator system to power the microcontroller, and analogue blocks for controlling other system components (e.g., relay drivers, high voltage side driver outputs, wake-up inputs) operating on automotive battery power.The S9S12VR16F0MLCR is targeted at general-purpose automotive applications that require single-node LIN communications. Typical examples of these applications include window lift modules, seat modules, and sunroof modules.

S9S12VR16F0MLCR Device Attributes

Core Processor: 12V1

Core specification: 16-bit

Speed: 25MHz

Connectivity: IrDA, LINbus, SCI, SPI

Peripherals: LVD, POR, PWM, WDT

Number of I/O: 16

Programme memory capacity: 16KB (16K x 8)

Programme memory type: Flash

EEPROM Size: 128 x 8

RAM Size: 2K x 8

Voltage - Supply (Vcc/Vdd): 3.13V ~ 5.5V

Data Converter: A/D 2x10b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

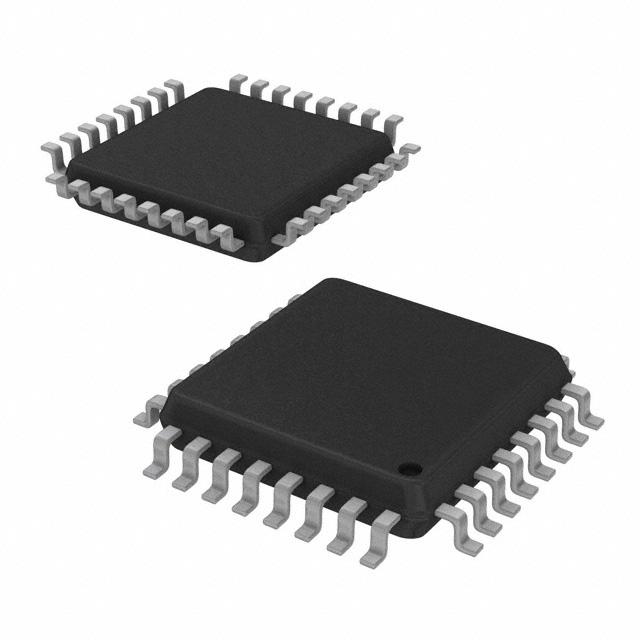

Package/Case: 32-LQFP

Supplier Device Package: 32-LQFP (7x7)
