NXP Semiconductors' ultra-reliable S9S12GN32BVLC 16-bit automotive microcontrollers are 16-bit MCUs optimised for low cost, high performance, and low pin count.The S9S12GN32BVLC MCUs are suitable for general purpose automotive and industrial applications that require CAN or LIN/SAE J2602 communication, including body controllers, occupant detection, door modules, seat controllers, RKE receivers, lighting modules, and smart junction boxes. , occupant detection, door modules, seat controllers, RKE receivers, smart actuators, lighting modules and smart junction boxes. These MCUs bridge the gap between high-end 8-bit MCUs and high-performance 16-bit MCUs.

Specification

Product Category: 16-bit Microcontrollers - MCUs

Series: S12G

Mounting Style: SMD/SMT

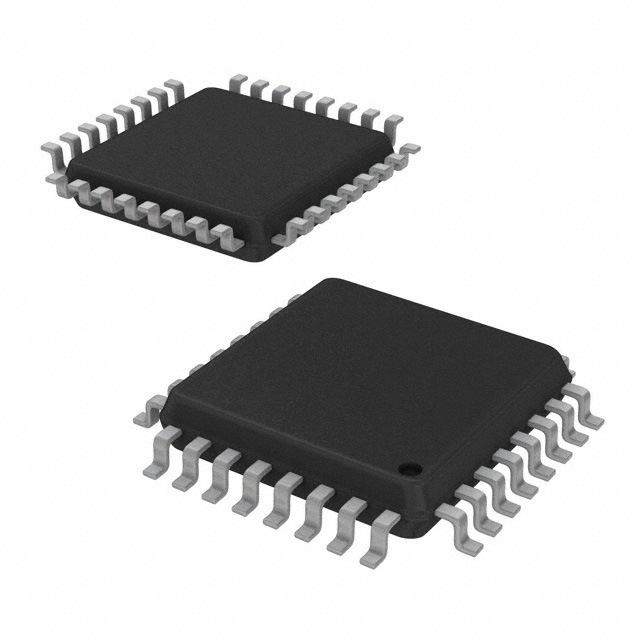

Package / Case: LQFP-32

Core: S12

Programme memory size: 32 kB

Data bus width: 16 bit

ADC resolution: 10 bit

Maximum clock frequency: 25 MHz

Number of inputs/outputs: 26 I/Os

Data RAM size: 2 kB

Supply voltage - min: 3.15 V

Supply voltage - max: 5.5 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 105 C

Analogue supply voltage: 5 V

Trademark: NXP Semiconductors

Data Ram Type: RAM

Data ROM size: 1 kB

Data Rom Type: EEPROM

Interface Type: SCI, SPI

Humidity Sensitivity: Yes

Number of ADC Channels: 8 Channel

Product: MCU

Programme memory type: Flash

Factory Package Quantity: 1250

Watchdog Timer: Watchdog Timer

Unit Weight: 188.600 mg

Applications

Body Controllers

Door Modules

HVAC

Seat Controllers

Smart Actuators

RKE Receiver

Occupant Detection

Lighting Module

Intelligent Junction Box

Fuel Pump
