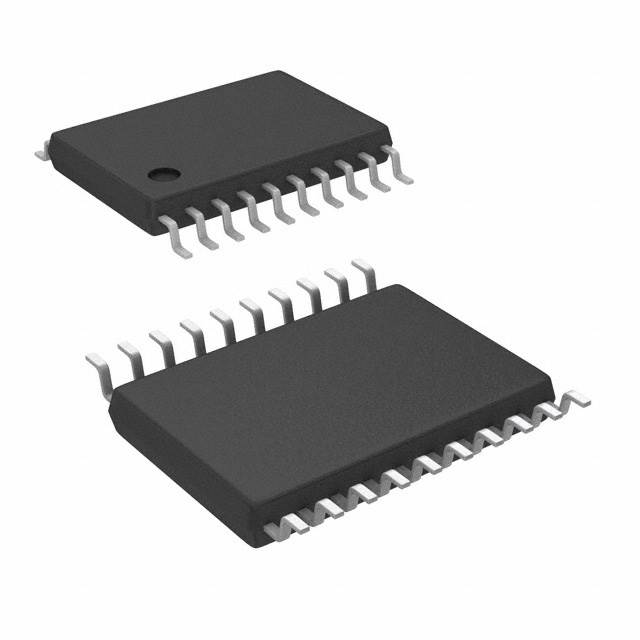

LPC804M101JDH20J Includes a CRC engine, two I2C-bus interfaces, up to two USARTs, one SPI interface, Capacitive Touch Interface (Cap Touch), one multi-rate timer, self-wake-up timer, one general purpose 32-bit counter/timer, one 12-bit ADC, one 10-bit DAC, one analog comparator, function-configurable I/O ports through a switch matrix, an input pattern match engine, Programmable Logic Unit (PLU), and up to 30 general-purpose I/O pins.

LPC804M101JDH20J  is an Arm Cortex-M0+ based, low-cost 32-bit MCU family operating at CPU frequencies of up to 15 MHz. The LPC804 supports 32 KB of flash memory and 4 KB of SRAM.

Product Features

Core Processor: ARM® Cortex®-M0+

Core Size: 32-Bit Single-Core

Speed: 15MHz

Connectivity: I²C, SPI, UART/USART

Peripherals: Brown-out Detect/Reset, POR, PWM, WDT

Number of I/O: 17

Program Memory Size: 32KB (32K x 8)

Program Memory Type: FLASH

RAM Size: 4K x 8

Voltage - Supply (Vcc/Vdd): 1.71V ~ 3.6V

Data Converters: A/D 12x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 105°C (TA)

Applications

Sensor gateways

Simple motor control

Industrial

Portables and wearables

Gaming controllers

Lighting

8/16-bit applications

Motor control

Consumer

Climate control

Fire and security applications
