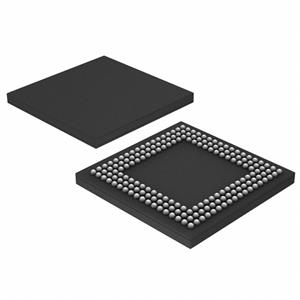

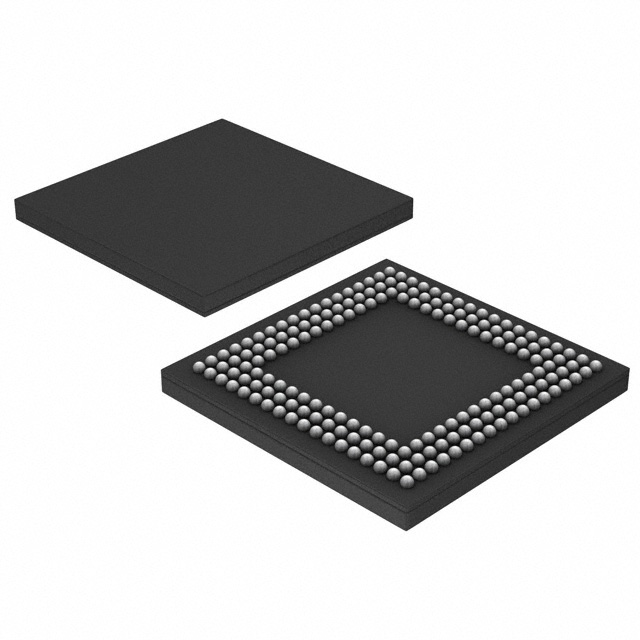

For picture reference, please see the specifications
< >

Commodity Model:LPC54S018J2MET180E

Trade Name:LPC54S018J2MET180E

Data Manual:LPC54S018J2MET180E.pdf

Brand:NXP

Particular Year:23+

Package:180-TFBGA

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
NXP
Model
LPC54S018J2MET180E
Package
180-TFBGA
Describe
ARM® Cortex®-M4 LPC540xx Microcontroller IC 32-bit Single Core 180MHz 2MB (2M x 8)

Product Description

The LPC54S018J2MET180E is a family of ARM Cortex-M4 based microcontrollers for embedded applications. microcontroller family with rich peripherals, very low power consumption and enhanced debugging capabilities.


The LPC54S018J2MET180E is a 32-bit core that offers system enhancements such as low power consumption, enhanced debugging capabilities and low power consumption.The LPC54S018J2MET180E is a 32-bit core that offers system enhancements such as low power consumption, enhanced debugging capabilities and a high level of support block integration.The ARM Cortex-M4 CPUs integrate a The ARM Cortex-M4 CPU integrates a 3-stage pipeline with a Harvard architecture, has separate local instruction and data buses and a third bus for peripherals, and includes an internal prefetch unit for multiplexing support. Includes an internal prefetch unit that supports speculative branching.ARMCortex-M4 supports single-cycle digital signal processing and SIMD instructions.A hardware floating-point processor is integrated into the core.


The LPC54S018J2MET180E family includes 4 MB of on-chip quad SPI serial flash (connected via the SPIFI interface), 360 KB of on-chip SRAM, one high-speed and one full-speed USB host and device controller, and one high-speed and one full-speed USB memory. Full-speed USB host and device controllers, Ethernet AVB, LCD controller, smart card interface, SD/MMC, CAN FD, External Memory Controller (EMC), DMIC subsystem with PDM microphone interface, and IEEE 802.11b/g/s. DMIC subsystem with PDM microphone interface and I2S, five general purpose timers, SCTimer/PWM, Multi-Rate Timer (MRT), a Window Watchdog Timer (WWDT), ten flexible serial, Secure Hash Algorithm (SHA), AES-256 engine, Physical Unclonable Function (PUF), Secure Boot Function, 12-bit 5.0 Msamples/sec ADC, and a temperature sensor.


Product Attributes

Core Processor: ARM® Cortex®-M4

Core specification: 32-bit single core

Speed: 180MHz

Connectivity: CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, Smart Card, SPI, SPIFI, UART/USART, USB

Peripherals: Undervoltage Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT

Number of I/O: 137

Programme memory capacity: 2MB (2M x 8)

Programme memory type: Flash

EEPROM Capacity: -

RAM Size: 360K x 8

Voltage - Supply (Vcc/Vdd): 1.71V ~ 3.6V

Data Converter: A/D 12x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

Package/Housing: 180-TFBGA

Supplier Device Package: 180-TFBGA (12x12)


Applications

• Building control and automation

• Diagnostic equipment

• Multi-node/multi-protocol communication hubs

• Data collectors, infotainment/navigation

• Data collector, infotainment/navigation

• Telematics/fleet management
