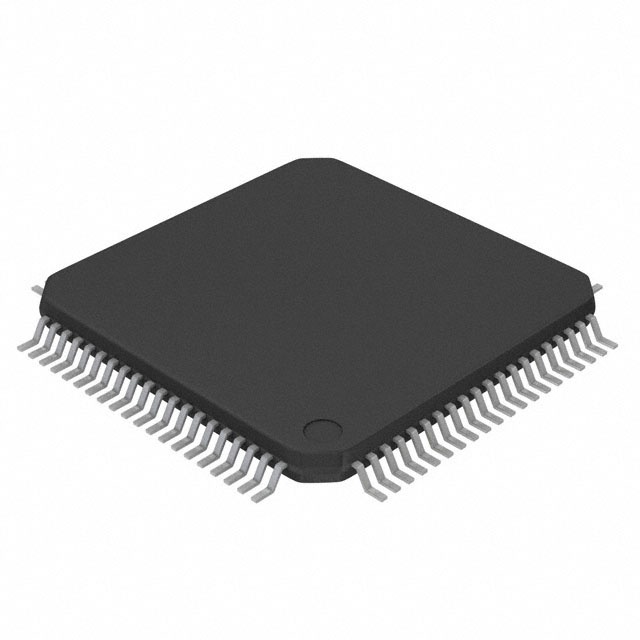

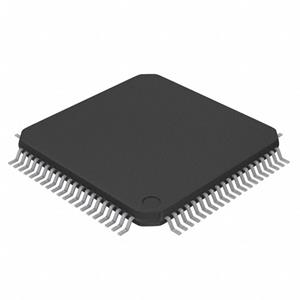

The LPC1758FBD80K is an ARM Cortex-M3-based microcontroller for embedded applications featuring high integration and low power consumption.The LPC1758FBD80K has a CPU frequency of up to 100 MHz, integrates a 3-stage pipeline, uses the Harvard architecture, and has separate local instruction buses and data buses, as well as separate local instruction and data buses and a third bus for peripherals, and includes an internal prefetch unit that supports speculative branching.

The peripheral complement of the LPC1758FBD80K includes up to 512 kB of Flash data memory, Ethernet MAC, USB device/host/OTG interface, 8-channel general-purpose DMA controller, 4 UARTs, 2 CAN channels, 2 SSP controllers, SPI interface, 2 I2C bus interfaces, 2-input plus 2-output I2S bus interfaces, 6-channel 12-bit analogue-to-digital converter, 10-channel 12-bit digital converter, and 10-bit analogue-to-digital converter. 6-channel 12-bit analogue-to-digital converter, 10-bit digital-to-analogue converter, motor control PWM, quadrature encoder interface, 4 general-purpose timers, 6 output general-purpose PWMs, ultra-low-power real-time clock (RTC), and up to 52 general-purpose I/O pins.

Product Attributes

Core processor: ARM® Cortex®-M3

Core specification: 32-bit single core

Speed: 100MHz

Connectivity: CANbus, Ethernet, I²C, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG

Peripherals: Undervoltage Detect/Reset, DMA, I²S, Motor Control PWM, POR, PWM, WDT

Number of I/O: 52

Program memory capacity: 512KB (512K x 8)

Program memory type: Flash

EEPROM Capacity: -

RAM Size: 64K x 8

Voltage - Supply (Vcc/Vdd): 2.4V ~ 3.6V

Data Converter: A/D 6x12b; D/A 1x10b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

Package/Housing: 80-LQFP

Supplier Device Package: 80-LQFP (12x12)

Applications

• Electronic metering

• Lighting

• Industrial networks

• Alarm systems

• White Goods

• Motor Control
