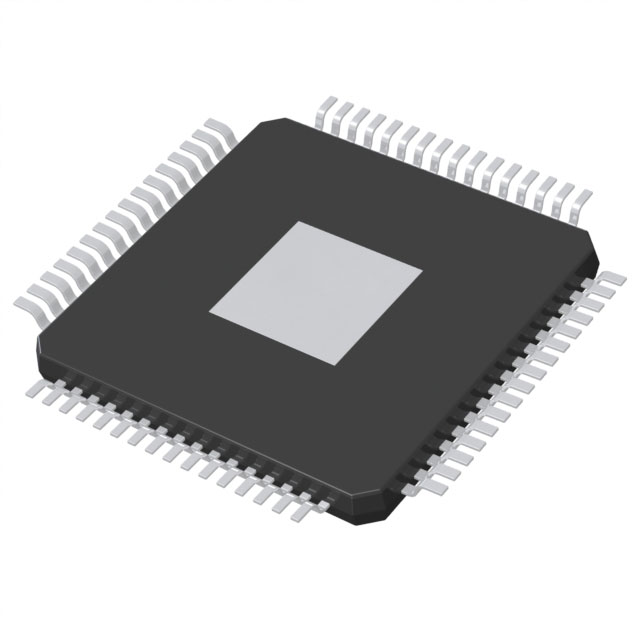

For picture reference, please see the specifications
< >

Commodity Model:LPC55S69JBD64K

Trade Name:LPC55S69JBD64K

Data Manual:LPC55S69JBD64K.pdf

Brand:NXP

Particular Year:23+

Package:64-TQFP

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
NXP
Model
LPC55S69JBD64K
Package
64-TQFP
Describe
ARM® Cortex®-M33 LPC55S6x Microcontroller IC 32-bit Single Core 150MHz 640KB (640K x 8)

Product Description

The LPC55S69JBD64K is an ARM Cortex-M33 based microcontroller for embedded applications. This device includes an ARM Cortex-M33 coprocessor, CASPER Crypto/FFT engine, PowerQuad hardware accelerator for DSP functionality, up to 320 KB of on-chip SRAM, up to 640 KB of on-chip Flash, ARM Cortex-M33 based microcontroller for embedded applications. High-speed and full-speed USB host and device interfaces for full-speed, crystal-free operation.


SD/MMC/SDHC full-speed, SD/MMC/SDIO interfaces, five general-purpose timers, one SCTimer/PWM, one RTC/alarm timer, one 24-bit multirate timer (MRT), one windowed watchdog timer (WWDT), nine flexible serial communication peripherals (configurable as USART, SPI, high-speed SPI, I2C, SPI, high-speed SPI, I2C, or I2S interfaces), a Programmable Logic Unit (PLU), a 16-bit 1.0 Msamples Programmable Logic Unit (PLU), and a 16-bit 1.0 Msamples/sec ADC that can perform simultaneous conversions. technology provides isolation to protect valuable IP and data. It simplifies the design and software development of digital signal control systems, (DSP) instructions simplify the design and software development of digital signal control systems. To support security requirements, the LPC55S6x also supports secure boot, HASH, AES, RSA, UUID, DICE, dynamic encryption and decryption, debug verification, and TBSA compliance.


Product Attributes

Core Processor: ARM® Cortex®-M33

Core specification: 32-bit single core

Speed: 150MHz

Connectivity: Flexcomm, I²C, MMC/SD/SDIO, SPI, UART/USART, USB

Peripherals: Undervoltage Detect/Reset, DMA, I²S, POR, PWM, WDT

Number of I/O: 36

Programme memory capacity: 640KB (640K x 8)

Programme memory type: Flash

EEPROM Capacity: -

RAM Size: 320K x 8

Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V

Data Converter: A/D 10x16b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

Package/Housing: 64-TQFP Exposed Pad

Supplier Device Package: 64-HTQFP (10x10)


Applications

• Control system exceptions and peripheral interrupts

• 60 directional interrupts

• Four levels of programmable interrupt priority with hardware priority masking

• Non-maskable interrupts (NMI)

• Software interrupt generation

• System timer
