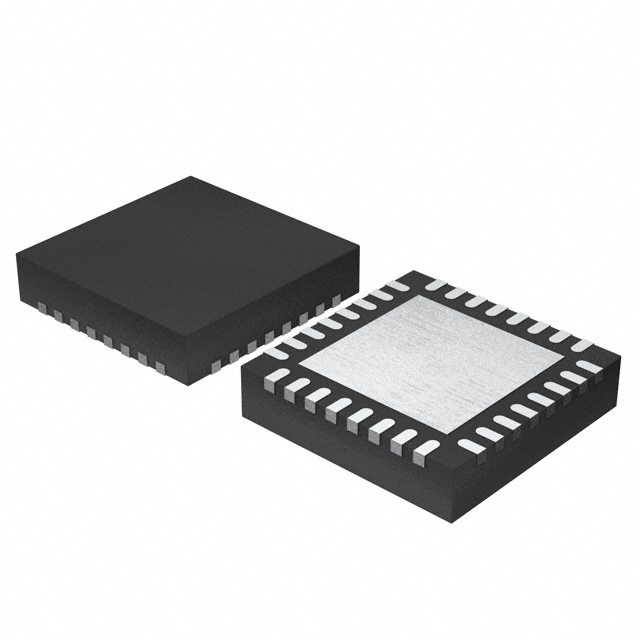

For picture reference, please see the specifications
< >

Commodity Model:LPC824M201JHI33Y

Trade Name:LPC824M201JHI33Y

Data Manual:LPC824M201JHI33Y.pdf

Brand:NXP

Particular Year:23+

Package:32-VFQFN

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
NXP
Model
LPC824M201JHI33Y
Package
32-VFQFN
Describe
ARM® Cortex®-M0+ LPC82x Microcontroller IC 32-bit Single Core 30MHz 32KB (32K x 8) Flash 32-HVQFN (5x5)

Product Description

The LPC824M201JHI33Y is a family of low-cost 32-bit MCUs based on the ARM Cortex-M0+ with CPU frequencies up to 30 MHz.The LPC824M201JHI33Y supports up to 32 KB of Flash and 8 KB of SRAM.


The peripheral complement of the LPC824M201JHI33Y includes a CRC engine, four I2C bus interfaces, up to three USART interfaces, up to three USARTs, up to two SPI interfaces, a multirate timer, a self-wake-up timer and a status timer, state configurable timer with PWM (SCTimer/PWM), a DMA, and a 12-bit ADC. DMA, a 12-bit ADC and an analogue comparator, functionally configurable I/O ports via switch matrix, an input pattern matcher, an I/O port and an I/O interface.


Product Attributes

Core processor: ARM® Cortex®-M0+

Core specification: 32-bit single core

Speed: 30MHz

Connectivity: I²C, SPI, UART/USART

Peripherals: Undervoltage Detect/Reset, DMA, POR, PWM, WDT

Number of I/O: 29

Program memory capacity: 32KB (32K x 8)

Programme memory type: Flash

EEPROM Capacity: -

RAM Size: 8K x 8

Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V

Data Converter: A/D 12x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

Package/Housing: 32-VFQFN Exposed Pad

Supplier Device Package: 32-HVQFN (5x5)


Applications

• Sensor Gateways

• Simple Motor Control

• Industrial

• Portable and wearable devices

• Game controllers

• Lighting

• 8/16-bit Applications

• Motor Control

• Consumer Products

• Fire and Security Applications

• Climate Control
