CY8C4124PVA-442ZT is a scalable and reconfigurable platform architecture for a family of programmable embedded system controllers with an Arm® Cortex®-M0+ CPU while being AEC-Q100 compliant.

CY8C4124PVA-442ZT is based on Arm® Cortex®-M0+ CPU，Automotive PSoC™ 4100S family, 32-Bit Single-Core Microcontroller IC.

Product Attributes

Core Processor: ARM® Cortex®-M0

Core Size: 32-Bit Single-Core

Speed: 24MHz

Number of I/O: 24

Program Memory Size: 16KB (16K x 8)

Program Memory Type: FLASH

RAM Size: 4K x 8

Voltage - Supply (Vcc/Vdd): 1.71V ~ 5.5V

Data Converters: A/D 8x12b SAR; D/A 2xIDAC

Oscillator Type: Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

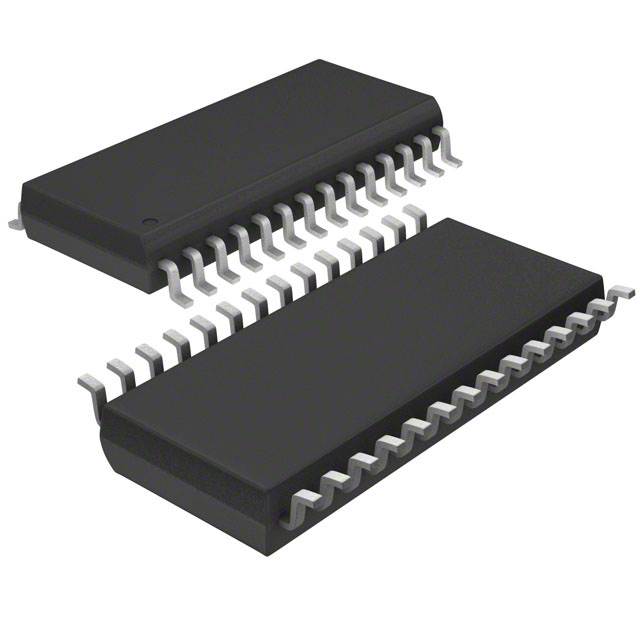

Package / Case: 28-SSOP

Product Features

32-bit MCU subsystem

48-MHz Arm® Cortex®-M0+ CPU

Up to 128 KB of flash with Read Accelerator

Up to 16 KB of SRAM

8-channel DMA engine

Low-power 1.71 V to 5.5 V operation

Deep Sleep mode with operational analog and 2.5 A digital system current

4 to 33 MHz external crystal oscillator (ECO)

PLL to generate 48-MHz frequency

32-kHz watch crystal oscillator (WCO)

±2% internal main oscillator (IMO)

32-kHz internal low-power oscillator (ILO)

True random number generator (TRNG)

Up to 54 programmable GPIO pins
