Product details and feature overview for Amphenol 10124806-01114LF DIMM connectors are listed below:

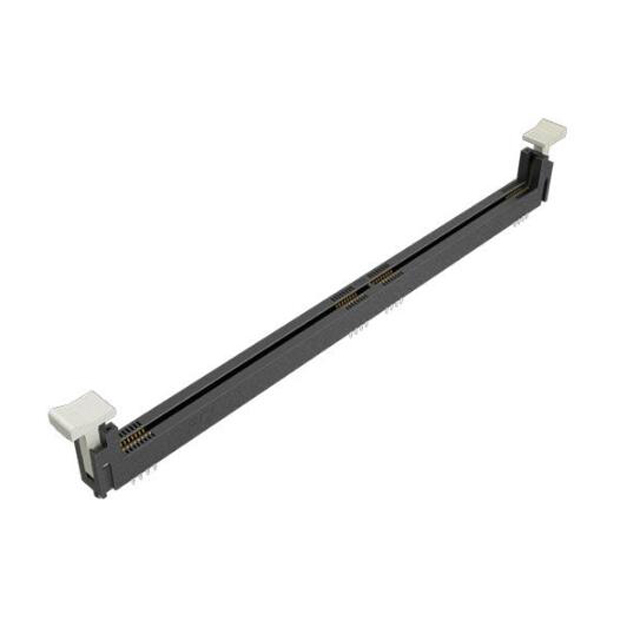

Amphenol 10124806-01114LF is a high-performance DIMM connector designed for DDR4 memory modules with 288 pins to support high-speed data transfer and low-power features. Its durability, signal integrity, and environmental compliance make it widely used in high-performance computing devices such as desktops, servers, and data centres.

1. Models

10124806-01114LF: 288POS, DIMM Connector - DDR4 Memory Module Socket.

2. Type

DIMM connector: Used for installing DDR4 memory modules to support high-speed data transfer.

3. Number of pins

288 pins: Compliant with the standard for DDR4 memory module.

4. Electrical Characteristics

- High-speed signalling: Supports the high frequency of DDR4 (typically 2133 MHz to 3200 MHz or higher).

- Signal integrity: Optimised design to reduce signal loss and interference.

- Low power consumption: meets the low voltage requirements of DDR4 (typically 1.2V).

5. Mechanical Features

- Plug and unplug: Supports multiple plugs and unplugs to ensure long-term reliability.

- Locking Mechanism: Equipped with snap-on design to ensure stable installation of memory modules.

- Mounting method: Surface Mount Technology (SMT), suitable for automated production.

6. Material

- Shell material: high temperature plastic (such as LCP), with good heat resistance and mechanical strength.

- Contact material: phosphor bronze or beryllium copper, gold or tin plated to improve conductivity and corrosion resistance.

7. Working Temperature

Operating temperature range: Typically -55°C to +85°C, suitable for a variety of environments.

8. Applications

Desktops, servers, workstations: Widely used in devices that require high performance memory.

Data centres and cloud computing: Support high bandwidth and low latency memory requirements.

9. Product Advantages

- High reliability: Suitable for high-performance computing environments.

- Signal Integrity: Optimised design to reduce signal loss.

- Broad compatibility: Supports a wide range of DDR4 memory modules.
