Trade Name:Blackfin Embedded Processors
Brand:ADI
Particular Year:25+
Package:BGA-184
Delivery Date:New and original
Stock: 2500pcs

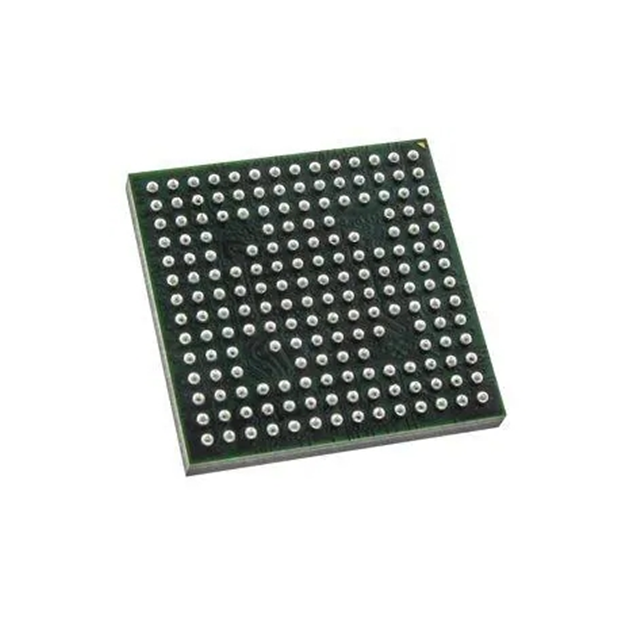

The ADSP-BF707KBCZ-4 device is a member of the ADSP-BF70x Blackfin Digital Signal Processor (DSP) family. The new Blackfin+ processor core combines 16-bit dual Macs, 32-bit Macs and 16-bit complex Macs into a state-of-the-art signal processing engine. The ADSP-BF707KBCZ-4 combines the benefits of a clean and orthogonal RISC microprocessor instruction set with the capabilities of single instruction, multiple data stream (SIMD) multimedia into a single instruction set architecture. The latest enhancements to the Blackfin+ kernel include cache enhancements, branch prediction, and other instruction set improvements, while keeping the instruction set compatible with previous Blackfin products.
The ADSP-BF707KBCZ-4 processor delivers performance up to 400 MHz with a minimum power consumption of less than 100 mW. They use a low-power, low-voltage design approach to deliver world-class power management and performance.
Technical specification
Product: ADSP-BF707KBCZ-4
Core: Blackfin+
Number of cores: 1 Core
Max clock frequency: 400 MHz
Package/box: BGA-184
Program memory size: -
Data RAM size: 64 kB
L1 Cache instruction memory: 64 kB
L1 Cache data storage: 64 kB
Working power supply voltage: 1.1V
Series: ADSP-BF707
Installation style: SMD/SMT
Operating temperature: 0°C to + 70°C
Data bus width: 16 bit, 32 bit
Data ROM size: 512 kB
Height: 1.19 mm
I/O voltage: 1.8V, 3.3V
Interface type: CAN, I2C, MSI, PPI, SPI, UART, USB
Length: 12 mm
MMACS: 800 MMACS
Humidity sensitivity: Yes
Number of inputs/outputs: 47 I/ OS
Number of timers/counters: 8 x 32 bits
Supply voltage: 1.045V to 3.47V
Watchdog Timer: Watchdog Timer
Width: 12 mm
Unit weight: 438 mg
