The ADUC848BCPZ62-3 is a high-performance 8-bit microcontroller from ADI, ‌, belonging to the ‌MicroConverter® ADuC8xx‌ series ‌.

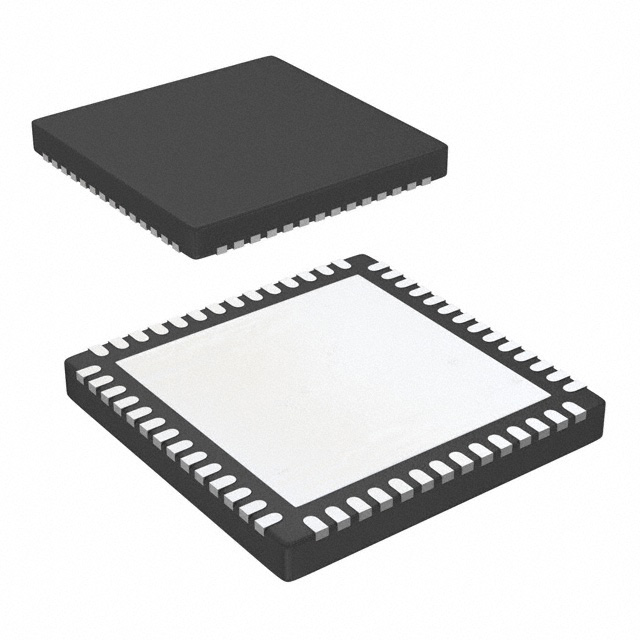

Package ‌ : ADUC848BCPZ62-3 The ADUC848BCPZ62-3 is packaged in the ‌56-LFCSP-VQ‌ (8x8mm) compact package, applicable to the scenario where space is limited ‌.

Core architecture ‌ : ADUC848BCPZ62-3 Based on ‌8052 kernel ‌, supports single-cycle command execution, the main frequency is ‌ 12.58MHz ‌, improves real-time task processing efficiency ‌.

Storage configuration ‌ : ADUC848BCPZ62-3 integrates ‌62 KB flash ‌ (program storage) and ‌ 2.25KB RAM‌, supporting complex algorithms and data caching ‌.

The ADUC848BCPZ62-3 microcontroller has the following features:

High resolution Σ-Δ ADC

Two independent 24-bit ADCs are available on the ADuC845

Single-channel 16-bit ADC

Up to 10 ADC input channels are supported on all devices

24-bit no-lose code

22-bit root mean square (19.5-bit peak-peak) effective resolution

Offset drift 10 nV/°C, gain drift 0.5 ppm/°C Chopper enabled

memorizer

62 kB of on-chip Flash/EE program memory

4 kB on-chip Flash/EE data storage

Flash/EE, retention time: 100 years, durability of 100,000 cycles

Level 3 Flash/EE program memory security

Online serial download (no external hardware required)

High Speed user download (5 seconds)

2304 bytes of on-chip data RAM
