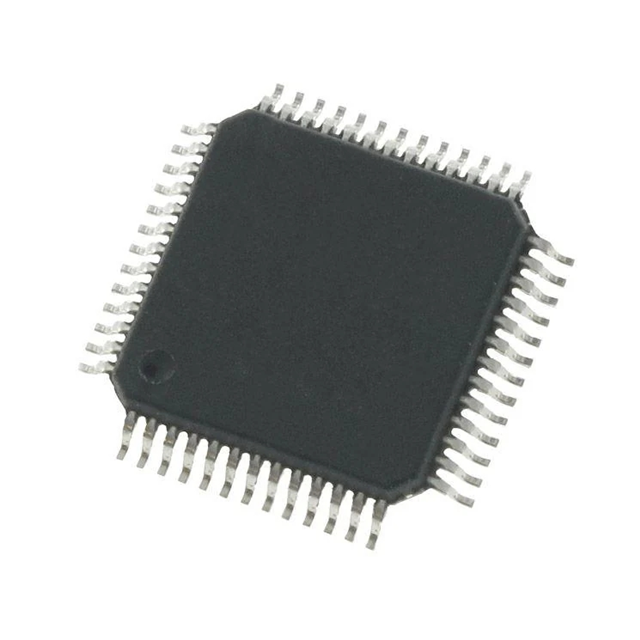

The ADUC842BSZ62-5 is an 8052-core based 8-bit microcontroller with a 32 kHz crystal oscillator and an on-chip PLL that produces a programmable core clock of up to 16.78 MHz.

The ADUC842BSZ62-5 also includes additional analog capabilities, two 12-bit Dacs, a power monitor, and a band-gap voltage reference source. The on-chip digital peripherals include two 16-bit sigma-δ types. DAC, 1 dual-channel output 16-bit PWM, 1 watchdog timer, 1 time interval counter, 3 timers/counters and 3 serial I/O ports (SPI, I2C and UART).

ADUC842BSZ62-5 -- Technical specification

Core: 8052

Program memory size: 62 kB

Data RAM size: 2.25 kB

Package/housing: MQFP-52

Max clock frequency: 20 MHz

ADC resolution: 12 bit

Number of inputs/outputs: 34 I/ OS

Supply voltage - Minimum: 4.75V

Power supply voltage - Max: 5.25V

Installation style: SMD/SMT

Data bus width: 8 bit

Operating temperature: -40 °C to + 85°C

Series: ADUC842

Height: 2 mm

Interface type: I2C/SPI/UART

Length: 10 mm

Humidity sensitivity: Yes

Number of ADC channels: 8 channels

Number of timers/counters: 3 Timer

Processor series: ADUC842

Product type: 8-bit Microcontrollers-MCU

Program memory type: Flash
