DDR4 memory modules have a small slot pitch and low operating voltage, allowing for more compact products that support faster data transfer rates.The DDR4 series complies with the new interface standard JEDEC POD12 and supports a wide range of module models including UDIMM, RDIMM and LRDIMM. The connectors are designed for use in storage systems, servers, desktops and industrial computer applications.

Basic Information:

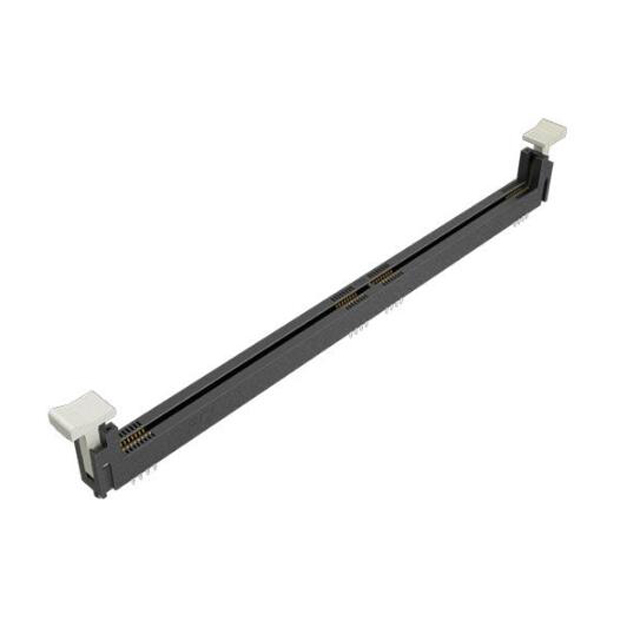

Model Number: 10124806-01101LF

Package: 288POS

Category: DIMM Connectors - DDR4 Memory Module Socket

Product Details: DDR4 DIMM, Storage and Server Connector, Vertical, Crimp Style, 288 pos, 0.85 mm (0.033 in) Pitch

10124806-01101LF - Product Specification:

Product Category: DIMM Connectors

Type: DDR4

Number of Positions: 288 positions

Pitch: 0.85 mm

Mounting: PCB mount

Termination: SMD/SMT

Contact Plating: Gold

Rated current: 750 mA

Contact material: copper alloy

Housing material: thermoplastic (TP)

Insulation resistance: 1 MΩ

Rated voltage: 1.2 V

Maximum operating temperature: + 85 °C

Minimum Operating Temperature: - 55 °C

Product Type: DIMM Connector

DDR4 Memory Module Slot - Product Features:

Smaller spacing, lower operating voltage

Supports faster data transfer rates

Saves board space

Various tail lengths for PCB thickness

Lower insertion force - easier insertion and removal of module cards

Saves board space and facilitates airflow

Single side latch fixing option available - saves board space
