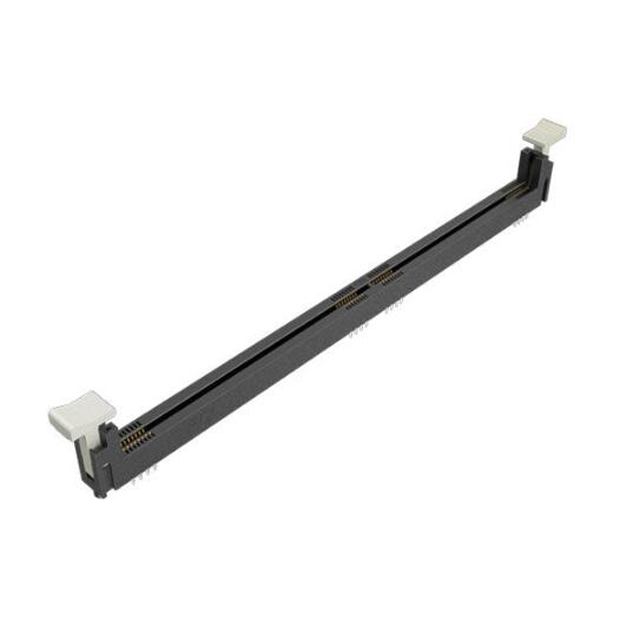

10124806-01001LF - DDR4 Memory Module Socket: DDR4 DIMM, Storage and Server Connector, Vertical, Crimp Style, 288 pos, 0.85 mm (0.033 in) Pitch

Basic Information:

Model Number: 10124806-01001LF

Package: 288POS

Category: DIMM Connectors - DDR4 Memory Module Socket

10124806-01001LF - Product Specification:

Product Category: DIMM Connector

Colour - Plastic Case: Black

Height on board: 21.30mm (0.839in)

Shell Material: High Temperature Thermoplastic

# of contacts: 288

Pitch: 0.85mm (0.033in)

Plated contact area: 0.76μm (30μin) gold

Memory type: DDR4 SDRAM

Resistance (contact): 10mΩ

Resistance (insulation): 1MΩ min

Termination method: Press-in type

Rated voltage: 1.2 V

Rated current: 0.75A

Operating temperature range: -55°C to +85°C

DDR4 Memory Module Slot - Product Features:

Smaller spacing and lower operating voltage - lower energy consumption

Supports faster data transfer rates - Faster conversion

Make products more compact - save board space

Various tail lengths for PCB thickness - meets different customer requirements

Lower insertion force - easier insertion and removal of module cards

Narrow housing solution - saves board space and facilitates airflow

Single side latch fixing option available - saves board space

Ruggedised housing, contact and latch design - meets the severe shock and vibration test standards of high-end servers
