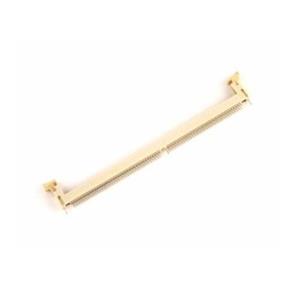

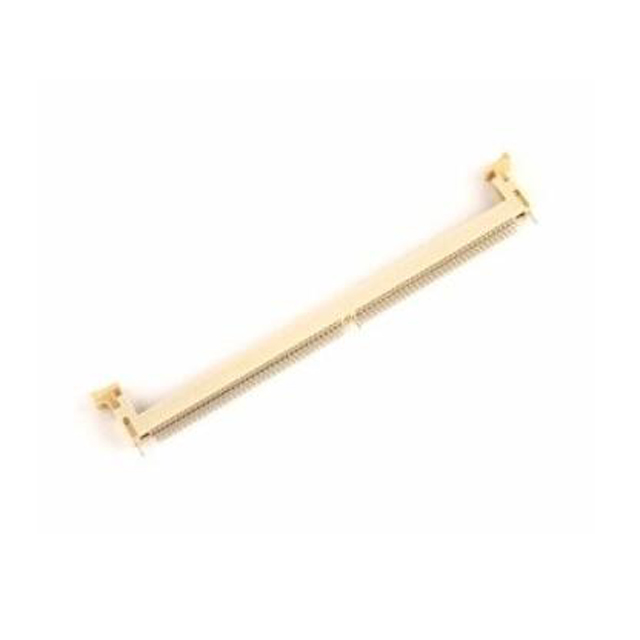

10124677-0120E13LF: DIMM Connectors - DDR4 Memory Module Slots

DDR4 memory module sockets have a small pitch and low operating voltage, allowing for more compact products that support faster data transfer rates.The DDR4 series complies with the new interface standard JEDEC POD12 and supports a wide range of module types including UDIMM, RDIMM and LRDIMM. The connectors are designed for use in storage systems, servers, desktops and industrial computer applications.

Basic Information:

Model Number: 10124677-0120E13LF

Package: 288POS

Category: DIMM Connectors - DDR4 Memory Module Slots

Type: DDR4

Number of Positions: 288

Pitch: 0.85 mm

Mounting method: PCB mount

Termination: SMD/SMT

Contact Plating: Gold

Rated current: 750 mA

Contact material: copper alloy

Housing material: thermoplastic (TP)

Insulation resistance: 1 MΩ

Rated voltage: 1.2 V

Maximum operating temperature: + 65 °C

Minimum Operating Temperature: - 55 °C

Product Type: DIMM Connector

DDR4 Memory Module Slot - Product Features:

Smaller spacing and lower operating voltage - lower energy consumption

Supports faster data transfer rates - Faster switching

Makes products more compact - saves board space

Various tail lengths for PCB thickness - meets different customer requirements

Lower insertion force - easier insertion and removal of module cards

Narrow housing solution - saves board space and facilitates airflow

Single side latch fixing option available - saves board space

Ruggedised housing, contact and latch design - meets the severe shock and vibration test standards of high-end servers
