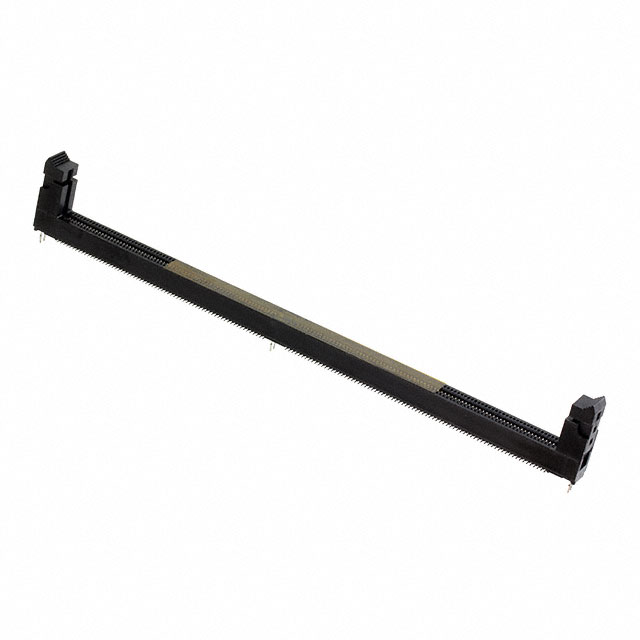

10124677-0101E13LF: 288 pos DIMM DDR4 SDRAM Individual Sockets Surface Mount

Amphenol ICC's vertical DDR4 DIMM sockets provide 288 contacts on a 0.85 mm pitch and are designed to accept DDR4 memory modules that comply with the JEDEC MO-309 standard. These sockets facilitate memory expansion for servers, workstations, desktop PCs, and embedded applications in communications and industrial equipment.

The DDR4 family complies with the new interface standard JEDEC POD12, which allows for a 2.40 mm module seating surface and supports UDIMM, RDIMM, and LRDIMM modules.

10124677-0101E13LF Product Attributes

Product Category: DIMM Connectors

Type: DDR4

Number of Positions: 288 Position

Pitch: 0.85 mm

Mounting Style: PCB Mount

Termination Type: SMD/SMT

Contact Plating: Gold

Current rating: 750 mA

Contact material: Copper Alloy

Housing material: Thermoplastic (TP)

Insulation resistance: 1 MOhms

Key type: Right

Maximum operating temperature: + 65 C

Minimum Operating Temperature: - 55 C

Voltage Rating: 1.2 V
