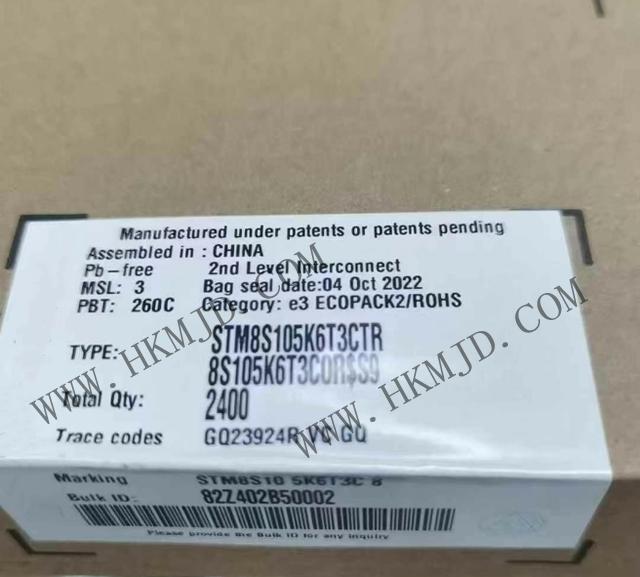

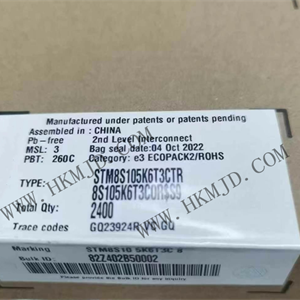

For picture reference, please see the specifications
< >

Commodity Model:STM8S105K6T3CTR

Trade Name:8-bit Microcontrollers - MCU

Brand:ST

Particular Year:25+

Package:LQFP-32

Delivery Date:New and Original

Stock: 10000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ST
Model
STM8S105K6T3CTR
Package
LQFP-32
Describe
8-bit Microcontroller -MCU 8-bit MCU Access 16 MHz 32kb Flash

Product Description

The STM8S105K6T3CTR is an 8-bit microcontroller from STMicroelectronics, belonging to the Access Line of the STM8S family. The STM8S105K6T3CTR is an 8-bit microcontroller from STMicroelectronics and belongs to the Access Line of the STM8S family. It features a 16MHz clock and integrates 32KB of Flash program memory and 1KB of EEPROM, and is designed to provide low power consumption and cost-effective performance for industrial and consumer applications.


Core Parameters and Features

Basic Performance

Kernel Architecture: Based on STM8 core, supporting Harvard architecture and three-stage pipeline, with a maximum frequency of 16MHz and a performance of 16 MIPS.

Storage resources:

32KB Flash: Supports 20 years of data retention at 55°C and 100,000 times of erasure.

1KB EEPROM: Data storage endurance 300,000 erasures.

RAM capacity: 2KB, supports real-time data processing.

Peripherals and Interfaces

Communication interface: integrated UART, SPI, I²C, support synchronous communication and smart card mode.

Timer:

16-bit advanced control timer: support PWM output, dead time control.

2×16-bit general-purpose timer: for signal capture and PWM generation.

ADC module: 10-bit precision, supports 10-channel analogue input, scan mode and voltage monitoring function.

Package and Reliability

Package: 32-LQFP (7×7mm) for compact PCB design.

Operating conditions: Voltage range 2.95V~5.5V, Temperature range -40℃~+125℃, meets industrial grade standards.


STM8S105K6T3CTR General Specifications

Core processor: STM8

Core specification: 8-bit

Speed: 16MHz

Connectivity: I2C, IrDA, LINbus, SPI, UART/USART

Peripherals: undervoltage detection/reset, POR, PWM, WDT

Number of I/O: 25

Program memory capacity: 32KB (32K x 8)

Programme memory type: Flash

EEPROM Size: 1K x 8

RAM Size: 2K x 8

Voltage - Supply (Vcc/Vdd): 2.95V ~ 5.5V

Data Converter: A/D 7x10b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Associated Products

Model

Brand

Package

Quantity

Describe

M38239GCFP

Renesas

QFP80

5000

Microcontroller IC 8-bit 10MHz 48KB (48K x 8) QzROM 80-QFP (14x20)

STM8L152R8T6

ST

LQFP-64

19000

8-Bit Microcontroller - MCU STM8L Ultra LP 8-Bit 64-Pin 64kB Flash

ATTINY816-MNR

Microchip

VQFN-20

6000

AVR tinyAVR™ 1, Functional Safety (FuSa) Microcontroller IC 8-bit 20MHz 8KB (8K x 8) Flash 20-VQFN (3x3)

AVR16EA28-E/SS

Microchip

SSOP-28

2000

AVR ® EA Microcontrollers with Flexible Low Power Architecture

AVR16EA28-I/STX

Microchip

VQFN-28

2000

AVR ® EA Microcontrollers with Flexible Low Power Architecture

AVR16DU20-I/REB

Microchip

VQFN-20

2000

AVR ® DU microcontrollers for safety-critical industrial and automotive applications

AVR16DU20-I/SS

Microchip

SSOP-20

1500

AVR ® DU microcontrollers for safety-critical industrial and automotive applications

AVR16EB20-E/SS

Microchip

SSOP-20

2000

AVR ® EB Series MCUs with Flexible Low Power Architecture

PIC18F05Q20-E/SL

Microchip

SOIC-14

2000

High-performance, low-power PIC18-Q20 microcontroller with XLP technology

PIC18F14Q20-E/SS

Microchip

SSOP-20

2000

High-performance, low-power PIC18-Q20 microcontroller with XLP technology
