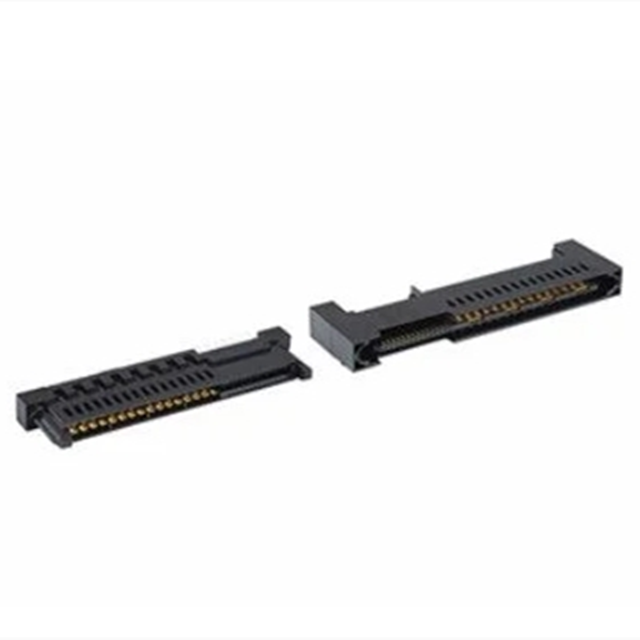

10124392-003LF HPCE® BTB is a board-to-board high current connector for demanding applications that require a high current density and a smaller connector size. It belongs to Amphenol ICC's HPCE® family along with HPCE and HPCE cable assemblies.

HPCE® board-to-board connectors feature an innovative power contact and plastic housing design that allows for a more compact and narrower version of the package for demanding AC and DC distribution applications.

Features and advantages

The rated current of each contact is up to 9A when the temperature rise in stationary air does not exceed 30°C.

The low package height (7.5 mm) optimizes air flow for rapid system cooling.

The well-ventilated plastic shell design achieves maximum heat dissipation.

Signal contacts for power control.

The number and location of power and signal contacts are highly configurable to meet custom power needs.

The integrated guide post function makes it ideal for blind fit applications with two-piece solutions.

The durable design includes anti-touch safety features that meet UL/IEC 60950 requirements.

Obtaining UL/VDE certification.

Target market/application

Pluggable AC/DC power supply for data and telecommunications

& Data communication/network equipment

Servers, switches and storage;

Industrial PC

Industrial control and instrumentation
