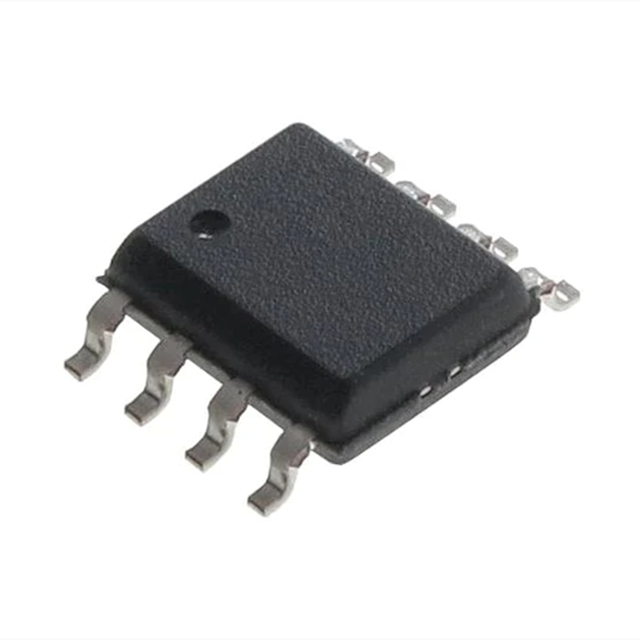

IC Chips ACS725LLCTR-05AB-T 5A Galvanically Isolated Current Sensor IC 8-SOIC

Product Description

ACS725LLCTR-05AB-T is sensed differentially in order to reject common-mode fields,improving accuracy in magnetically noisy environments.The inherent device accuracy is optimized through the close proximity of the magnetic field to the Hall transducer.

Product Attributes

Current Rating: 5 A

Sensor Type: Current Sense

Type: Linear Hall

Operating Supply Voltage: 3.3 V

Response Time: 4 us

Output Type: Analog

Height: 1.75 mm

Length: 4.9 mm

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

Moisture Sensitive: Yes

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Width: 3.9 mm

Features

3.3 V, single supply operation

Output voltage proportional to AC or DC current

Factory-trimmed sensitivity and quiescent output voltage for improved accuracy

Chopper stabilization results in extremely stable quiescent output voltage

Nearly zero magnetic hysteresis

Ratiometric output from supply voltage
