The TMS320VC5416ZWS160 fixed-point digital signal processor (DSP) is based on the advanced Harvard architecture, with one program memory bus and three data memory buses. The processor uses an arithmetic logic unit (ALU) with high parallelism capabilities, application-specific hardware logic, on-chip memory, and additional on-chip peripherals.

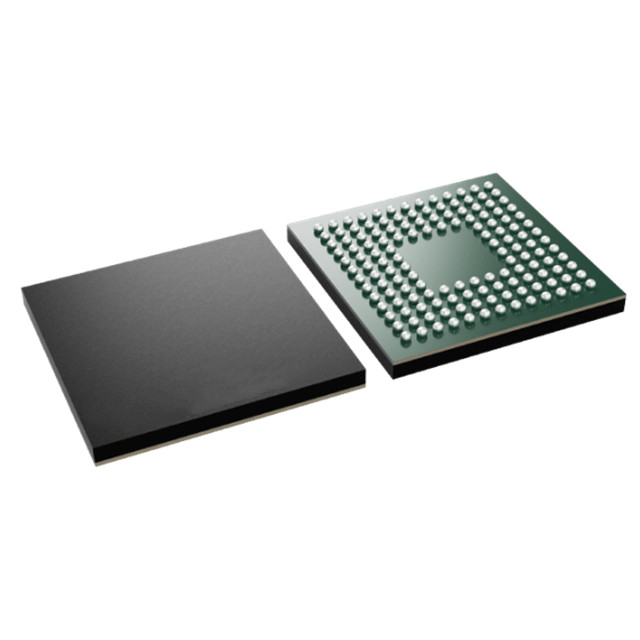

Product: TMS320VC5416ZWS160

Core: C54x

Package: NFBGA-144

Features:

Advanced multi-bus architecture with three independent 16-bit data memory buses and one program memory bus

A 40-bit arithmetic logic unit (ALU) consisting of a 40-bit bucket shifter and two independent 40-bit accumulators

A 17-by-17-bit parallel frequency multiplier coupled to a 40-bit dedicated analog-to-digital converter for non-pipelined single-cycle multiply/add (MAC) operations

Compare, Select, and store units (CSSUs) to add/compare Viterbi operators' selections

Index encoder, used to calculate the index value of the 40-bit accumulator value in one cycle

Two address generators with eight secondary registers and two secondary register algorithm units (ARAU)

A data bus with a bus bracket function

Extended addressing mode for 8M x 16-bit maximum addressable external program space

128K x 16-bit on-chip RAM, inclusive

Eight 8K x 16-bit on-chip dual-access program/data RAM blocks

Eight 8K x 16-bit on-chip single-access program RAM blocks

16K x 16-bit on-chip ROM, configured for program memory

Enhanced External Parallel Interface (XIO2)

Single instruction repetition and block repetition operations for program code

Block-memory-move instructions for better programming and data management

Instruction with 32-bit long word operand

An instruction read with two or three operands

Arithmetic instruction with parallel storage and parallel load

Conditional storage instruction

Interrupt quick return

On-chip peripherals

Software programmable wait state generator and programmable group switching

On-chip programmable phase-locked loop (PLL) clock generator with external clock source

A 16-bit timer

6-channel Direct Memory access (DMA) controller

Three multi-channel buffered serial Ports (McBSP)

8/16 bit Enhanced Parallel Host Port Interface (HPI8/16)

Power control with IDLE1, IDLE2, and IDLE3 instructions with power down mode

CLKOUT Turns off control to disable CLKOUT

Scan-on-chip based simulation logic, IEEE Std 1149.1 (JTAG) Boundary Scan logic

144 Pin Ball Grid Array (BGA) (GGU suffix)

144 Pin Thin Square Flat (LQFP) package (PGE suffix)

6.25ns single-cycle fixed-point instruction execution time (160 MIPS)

8.33ns single-cycle fixed-point instruction execution time (120 MIPS)

3.3V I/O supply voltage (160 and 120 MIPS)

1.6V core supply voltage (160 MIPS)

1.5V core supply voltage (120 MIPS)
