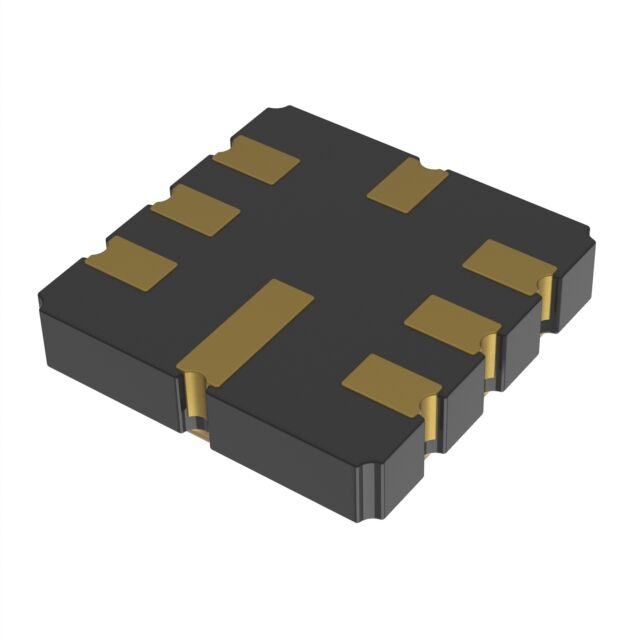

ADPL16000AATA is high-efficiency, high-voltage, synchronous DC-DC converters with integrated MOSFETs operating over a wide input-voltage range of 4.5V to 60V.

Features Of ADPL16000AATA

Eliminates External Components and Reduces Total Cost

No Schottky—Synchronous Operation for High Efficiency and Reduced Cost

Internal Compensation

Internal Feedback Divider for Fixed 3.3V, 5V Output Voltages

Internal Soft-Start

All Ceramic Capacitors, Ultra-Compact Layout

Flexibility to Support Multiple Rails in a System

Wide 4.5V to 60V Input Voltage Range

Fixed 3.3V and 5V Output Voltage Options

Adjustable 0.9V to 0.89 x VIN Output Voltage Option

Delivers up to 400mA Load Current

Configurable Between PFM and Forced-PWM Modes

Reduces Power Dissipation

92% Peak Efficiency

PFM Feature for High Light-Load Efficiency

2.2μA (typ) Shutdown Current

Operates Reliably in Adverse Industrial Environments

Hiccup-Mode Current Limit and Auto-retry Startup

Built-In Output Voltage Monitoring with Open-Drain RESET Pin

Programmable EN/UVLO Threshold

Monotonic Startup into Prebiased Output

Overtemperature Protection

Wide -40°C to +125°C Ambient Operating Temperature Range and -40°C to +150°C Junction Temperature Range

Complies with CISPR32 (EN55032) Class B Conducted and Radiated Emissions

Applications Of ADPL16000AATA

Industrial Sensors

4–20mA Current Loops

HVAC and Building Control

High-Voltage LDO Replacement

General Purpose Point-of-Load
