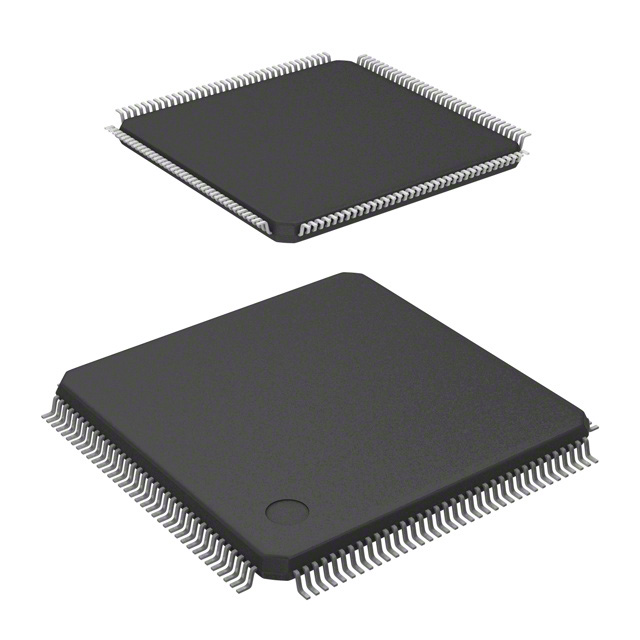

The STM32F730Z8T6 microcontroller is based on a high performance ARM® Cortex®-M7 32-bit RISC kernel and operates at frequencies up to 216MHz in a 144-pin LQFP package. The Cortex®-M7 core features a single floating-point unit (SFPU) accuracy that supports Arm® single precision data processing instructions and data types. It also implements a complete set of DSP instructions and a memory protection unit (MPU) to improve the security of applications.

Product specifications:

Core processor: ARM® Cortex®-M7

Kernel specifications: 32-bit single-core

Speed: 216MHz

Connection capacity: CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB

Peripheral: undervoltage detection/reset, DMA, I²S, POR, PWM, WDT

Number of I/ OS: 112

Program storage Capacity: 64KB (64K x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 256K x 8

Voltage-power supply (Vcc/Vdd) : 1.7V to 3.6V

Data converter: A/D 24x12b; D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: surface mount type

Package/case: 144-LQFP

Supplier Device package: 144-LQFP (20x20)

Basic product number: STM32F730
