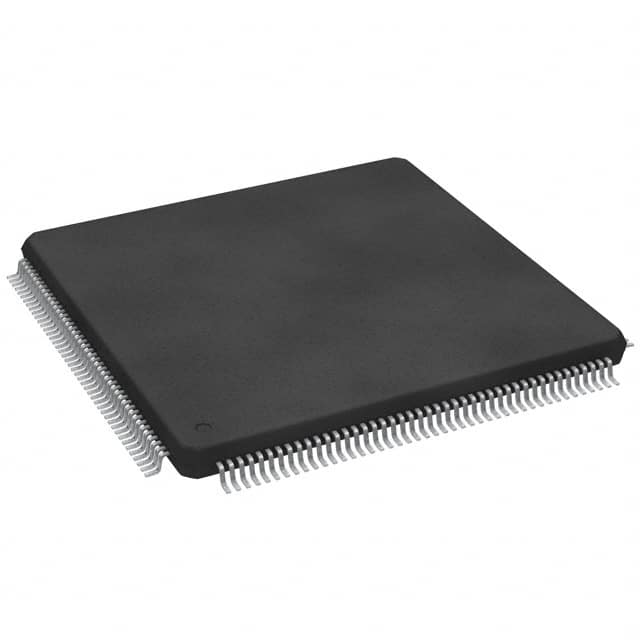

The STM32F207IGT6 device is based on a high-performance ARM® Cortex®-M3 32-bit RISC kernel in a 176-pin LQFP package with operating frequencies up to 120 MHz. The MCU integrates high-speed embedded memory (up to 1MB of flash memory, up to 132Kb of system SRAM), as well as a wide range of enhanced I/ o and peripherals connected to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix.

Device specifications:

Core processor: ARM® Cortex®-M3

Kernel specifications: 32-bit single-core

Speed: 120MHz

Connection capability: CANbus, Ethernet, I²C, IrDA, LINbus, Memory card, SPI, UART/USART, USB OTG

Peripheral: undervoltage detection/reset, DMA, I²S, LCD, POR, PWM, WDT

Number of I/ OS: 140

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 132K x 8

Voltage-supply (Vcc/Vdd) : 1.8V to 3.6V

Data converter: A/D 24x12b; D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: surface mount type

Package/case: 176-LQFP

Supplier Device Package: 176-LQFP (24x24)

Basic product number: STM32F207
